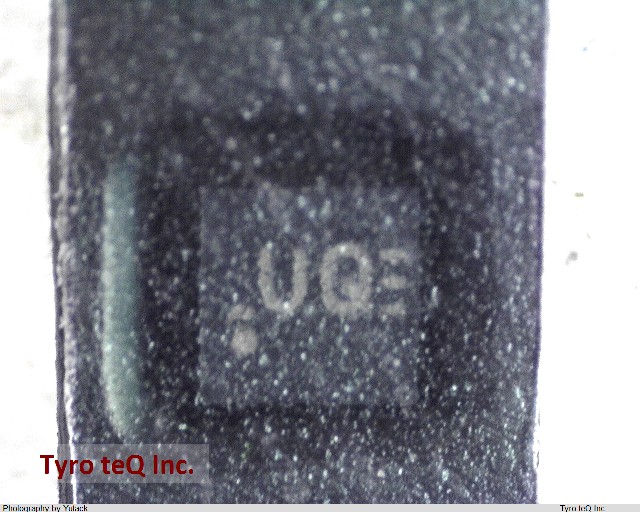

TLV7111833DDSER

Name: TLV7111833DDSER
Brand: TI
SKU: 300346114-0000-0000-0000

TLV7111833DDSER - TI の商品詳細ページです。

２営業日以内に回答いたします

TLV7111833DDSER の詳細情報

型番	TLV7111833DDSER
メーカー	TI
Adjustability	FIXED
Dropout Voltage1-Nom	0.15 V
Dropout Voltage2-Max	0.2 V
Input Voltage Absolute-Max	6 V
Input Voltage-Max	5.5 V
Input Voltage-Min	2 V
JESD-30 Code	S-PDSO-N6
JESD-609 Code	e4
Length	1.5 mm
Line Regulation-Max	0.005 %
Load Regulation-Max	0.015 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	2
Number of Terminals	6
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	0.2 A
Output Current2-Max	0.2 A
Output Voltage1-Max	1.836 V
Output Voltage1-Min	1.764 V
Output Voltage1-Nom	1.8 V
Output Voltage2-Max	3.366 V
Output Voltage2-Min	3.234 V
Output Voltage2-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	VSON
Package Equivalence Code	SOLCC6,.06,20
Package Shape	SQUARE
Package Style	SMALL OUTLINE, VERY THIN PROFILE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Seated Height-Max	0.8 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	CMOS
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Voltage Tolerance-Max	2 %
Width	1.5 mm
