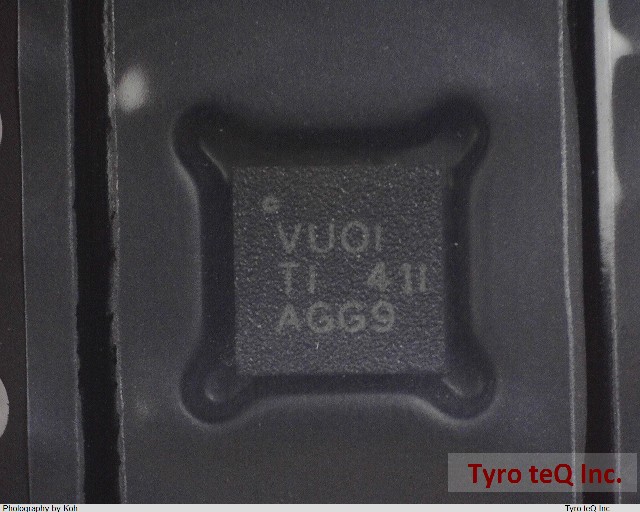

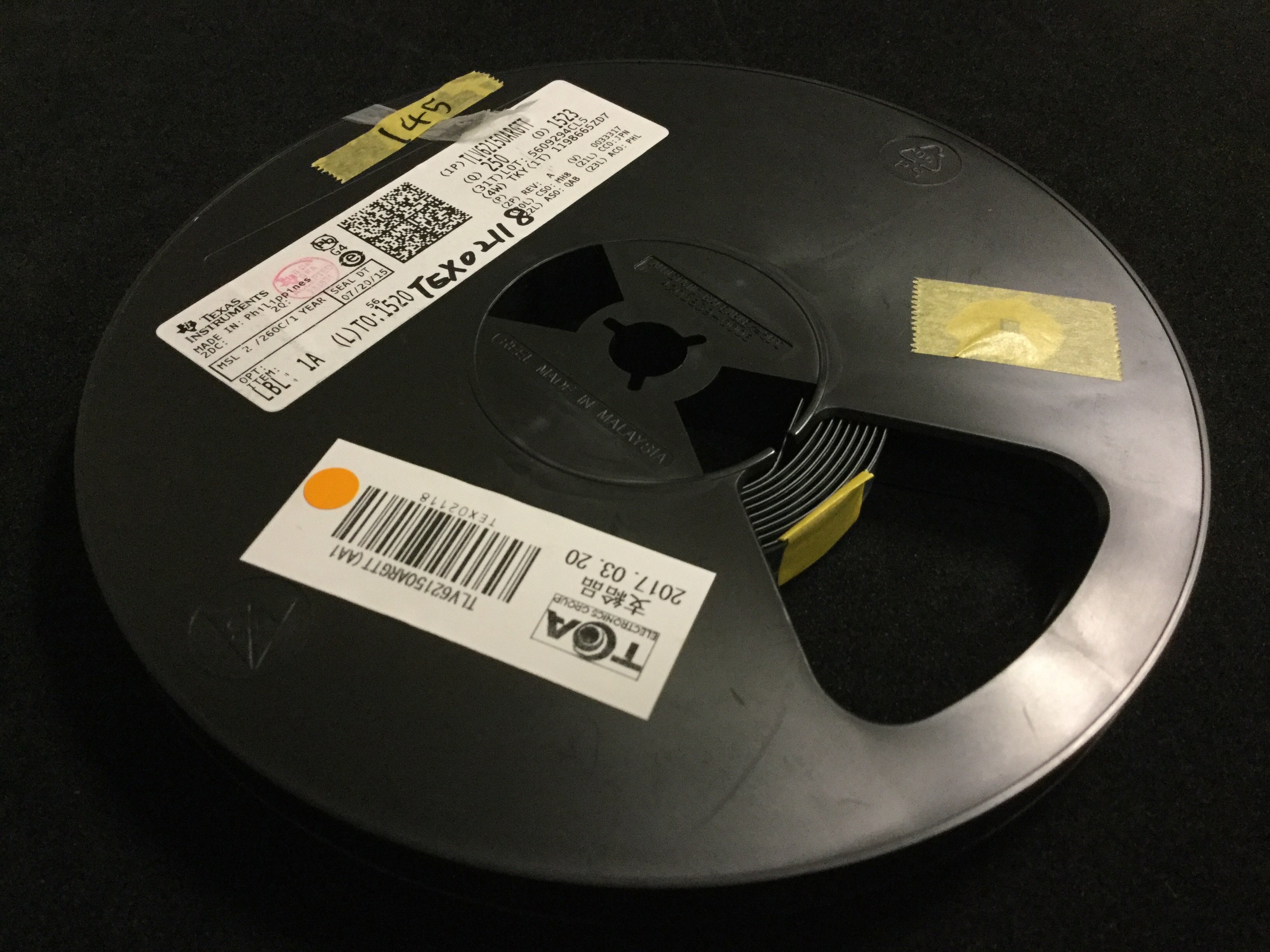

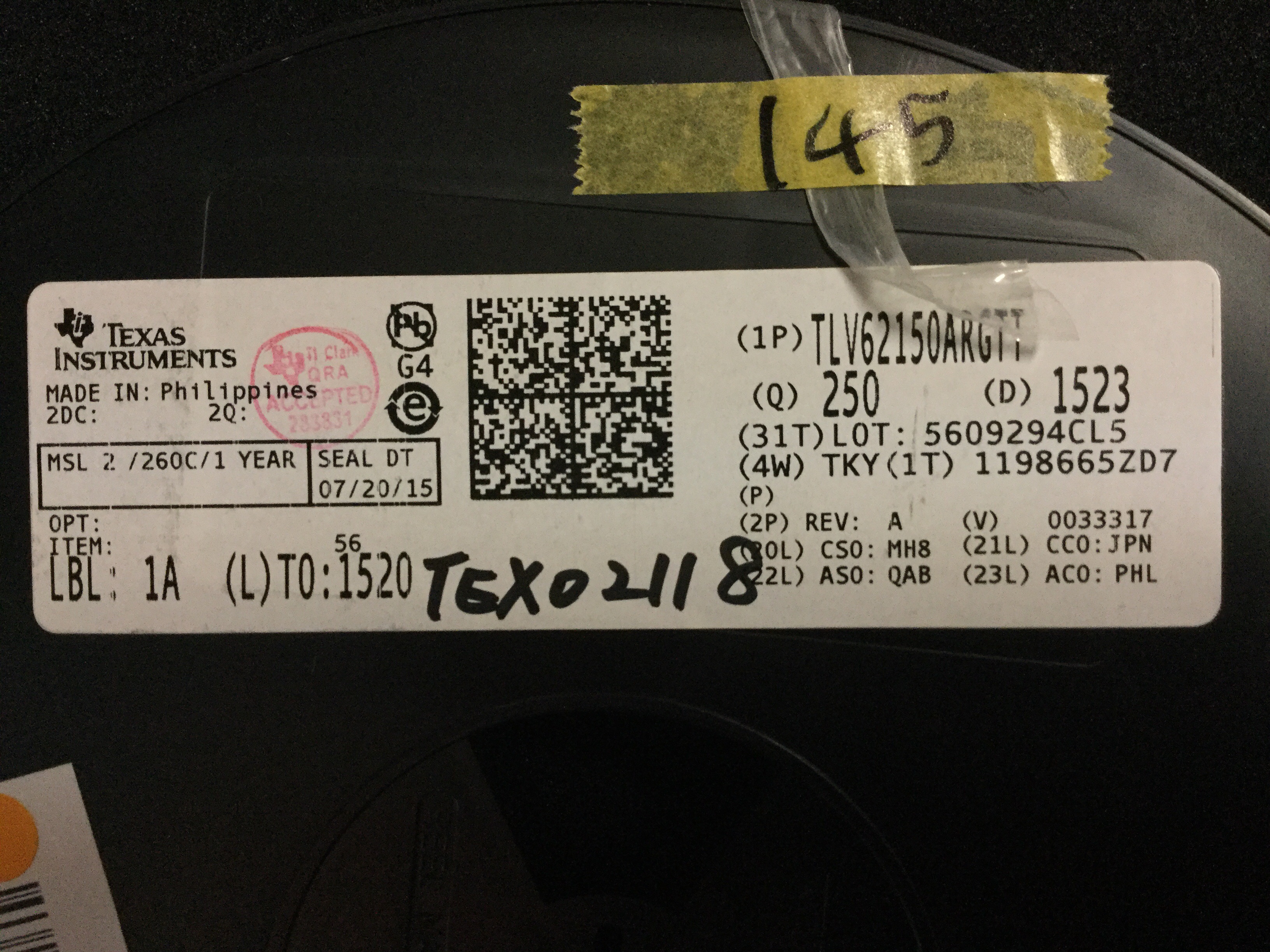

TLV62150ARGTT

Name: TLV62150ARGTT
Brand: TI
SKU: 300385375-0000-0000-0000

TLV62150ARGTT - TI の商品詳細ページです。

２営業日以内に回答いたします

TLV62150ARGTT の詳細情報

型番	TLV62150ARGTT
メーカー	TI
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM 0.9 TO 5V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT/VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	17 V
Input Voltage-Min	4 V
Input Voltage-Nom	12 V
JESD-30 Code	S-PQCC-N16
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	1 A
Output Voltage-Max	5.25 V
Output Voltage-Min	0.9 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC16,.12SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	2500 kHz
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3 mm
