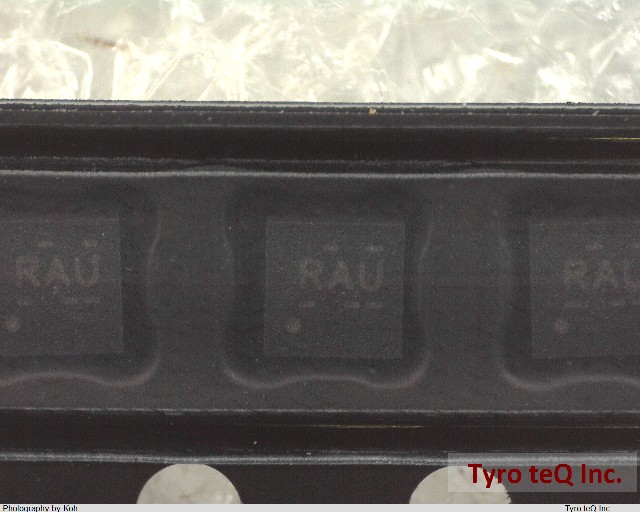

TLV62080DSGT

Name: TLV62080DSGT
Brand: TI
SKU: 300367161-0000-0000-0000

TLV62080DSGT - TI の商品詳細ページです。

２営業日以内に回答いたします

TLV62080DSGT の詳細情報

型番	TLV62080DSGT
メーカー	TI
Additional Feature	ADJUSTABLE OUTPUT MODE FROM 0.5 TO 4 VOLT; ALSO OPERATES IN PFM CONTROL TECHNIQUE
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	2.5 V
Input Voltage-Nom	3.6 V
JESD-30 Code	S-PDSO-N8
JESD-609 Code	e4
Length	2 mm
Moisture Sensitivity Level	2
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	4 A
Output Voltage-Max	4 V
Output Voltage-Min	0.5 V
Output Voltage-Nom	1.8 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Equivalence Code	SOLCC8,.08,20
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	2000 kHz
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	2 mm
