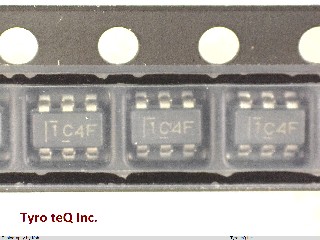

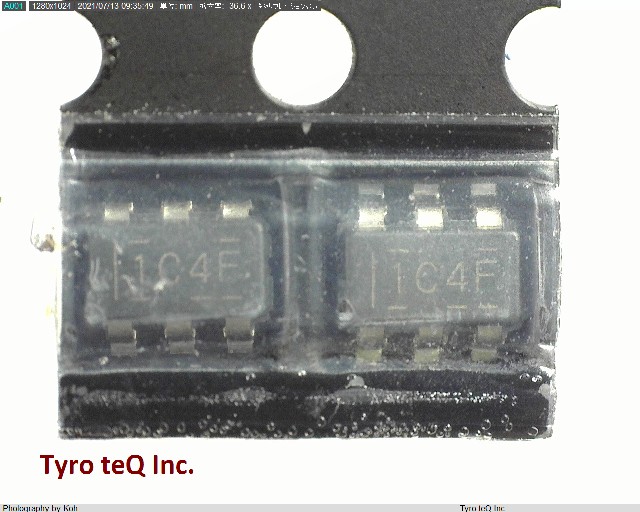

TLV61046ADBVR

Name: TLV61046ADBVR
Brand: TI
SKU: 300395867-0000-0000-0000

TLV61046ADBVR - TI の商品詳細ページです。

２営業日以内に回答いたします

TLV61046ADBVR の詳細情報

型番	TLV61046ADBVR
メーカー	TI
Additional Feature	ALSO REQUIRE PFM CONTROL TECHNIQUE; ALSO OPERATES IN ADJUSTABLE MODE FROM 3.3 TO 28V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	1.8 V
Input Voltage-Nom	3.6 V
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e4
Length	2.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	1.25 A
Output Voltage-Max	28 V
Output Voltage-Min	3.3 V
Output Voltage-Nom	12 V
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Seated Height-Max	1.45 mm
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	1250 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	1.6 mm
