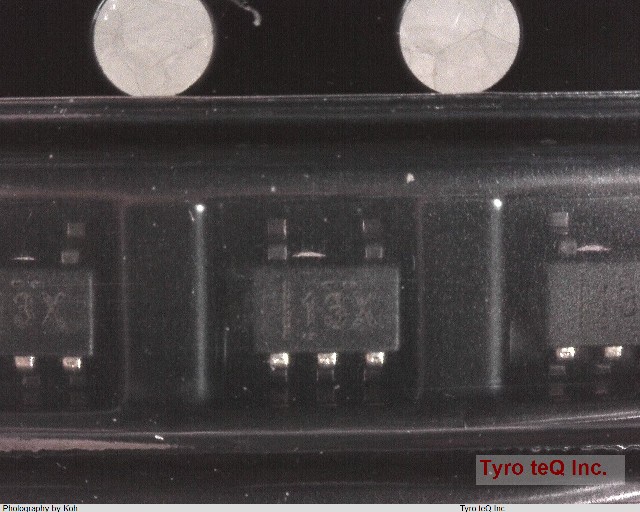

TLV6001IDCKT

Name: TLV6001IDCKT
Brand: TI
SKU: 400050913-0000-0000-0000

TLV6001IDCKT - TI の商品詳細ページです。

２営業日以内に回答いたします

TLV6001IDCKT の詳細情報

型番	TLV6001IDCKT
メーカー	TI
Amplifier Type	OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB)	7.6E-5 uA
Bias Current-Max (IIB) @25C	7.6E-5 uA
Common-mode Reject Ratio-Min	60 dB
Common-mode Reject Ratio-Nom	76 dB
Input Offset Voltage-Max	4500 uV
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e3
Length	2 mm
Moisture Sensitivity Level	2
Neg Supply Voltage Limit-Max	-3.5 V
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1.1 mm
Slew Rate-Nom	0.5 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.1 mA
Supply Voltage Limit-Max	7 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	1000 kHz
Width	1.25 mm
