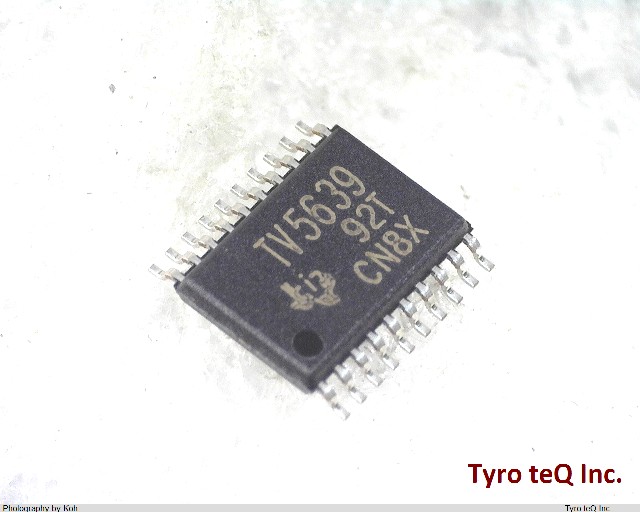

TLV5639CPW データシート

Name: TLV5639CPW
Brand: TI
SKU: 300005674-0000-0000-0000

TLV5639CPW - TI の商品詳細ページです。

２営業日以内に回答いたします

TLV5639CPW の詳細情報

型番	TLV5639CPW
メーカー	TI
データシート
Analog Output Voltage-Max	5.1 V
Analog Output Voltage-Min	0 V
Converter Type	D/A CONVERTER
Input Bit Code	BINARY
Input Format	PARALLEL, WORD
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e4
Length	6.5 mm
Linearity Error-Max (EL)	0.0732 %
Moisture Sensitivity Level	1
Number of Bits	12
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Sample Rate	0.286 MHz
Seated Height-Max	1.2 mm
Settling Time-Max	7 us
Settling Time-Nom (tstl)	1 us
Sub Category	Other Converters
Supply Current-Max	2.8 mA
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
