TLV2462AQPWR データシート

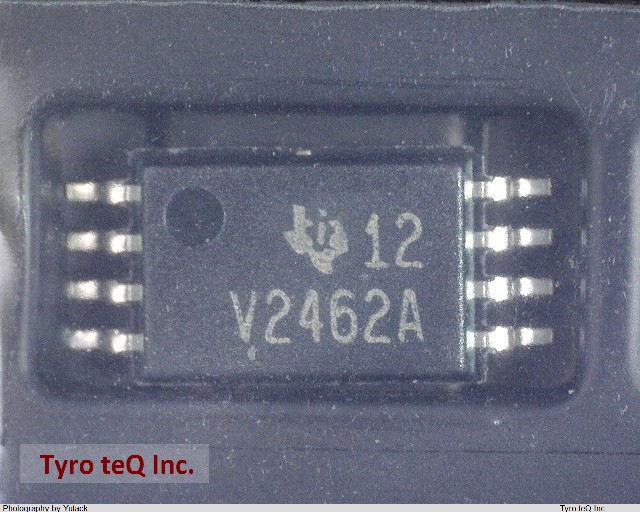

Name: TLV2462AQPWR
Brand: TI
SKU: 300098426-0000-0000-0000

TLV2462AQPWR - TI の商品詳細ページです。

２営業日以内に回答いたします

TLV2462AQPWR の詳細情報

型番	TLV2462AQPWR
メーカー	TI
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	7.5E-5 uA
Bias Current-Max (IIB) @25C	0.014 uA
Common-mode Reject Ratio-Min	71 dB
Common-mode Reject Ratio-Nom	85 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.007 uA
Input Offset Voltage-Max	1500 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	4.4 mm
Low-Bias	NO
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-1.35/+-3/2.7/6 V
Programmable Power	NO
Qualification Status	Not Qualified
Screening Level	AEC-Q100
Seated Height-Max	1.2 mm
Slew Rate-Min	0.8 V/us
Slew Rate-Nom	1.6 V/us
Sub Category	Operational Amplifier
Supply Current-Max	1.3 mA
Supply Voltage Limit-Max	6 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	6400 kHz
Voltage Gain-Min	31622
Wideband	NO
