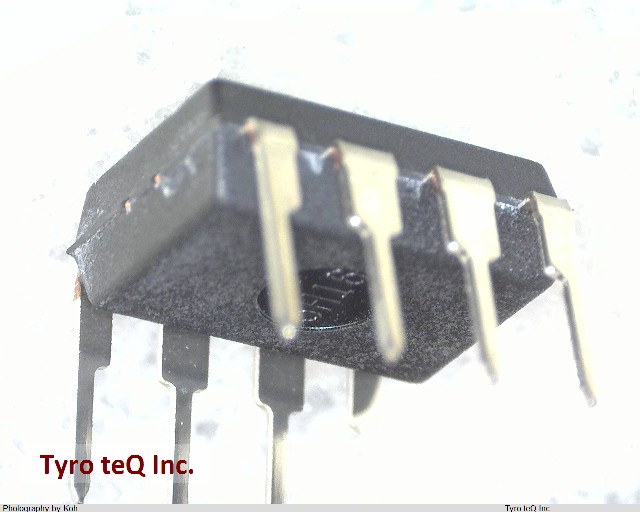

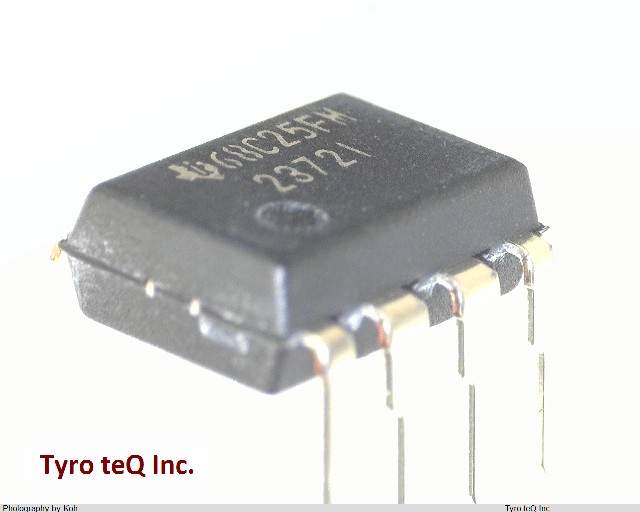

TLV2372IP

Name: TLV2372IP
Brand: TI
SKU: 300098017-0000-0000-0000

TLV2372IP - TI の商品詳細ページです。

２営業日以内に回答いたします

TLV2372IP の詳細情報

型番	TLV2372IP
メーカー	TI
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	6.0E-5 uA
Bias Current-Max (IIB) @25C	6.0E-5 uA
Common-mode Reject Ratio-Min	55 dB
Common-mode Reject Ratio-Nom	72 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	6.0E-5 uA
Input Offset Voltage-Max	4500 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e4
Length	9.59 mm
Low-Bias	YES
Low-Offset	NO
Micropower	NO
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power	NO
Power Supplies	+-1.35/+-8/2.7/16 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Slew Rate-Min	1 V/us
Slew Rate-Nom	2.4 V/us
Sub Category	Operational Amplifier
Supply Current-Max	1.32 mA
Supply Voltage Limit-Max	16.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	3000 kHz
Voltage Gain-Min	79432
Wideband	YES
Width	7.62 mm
