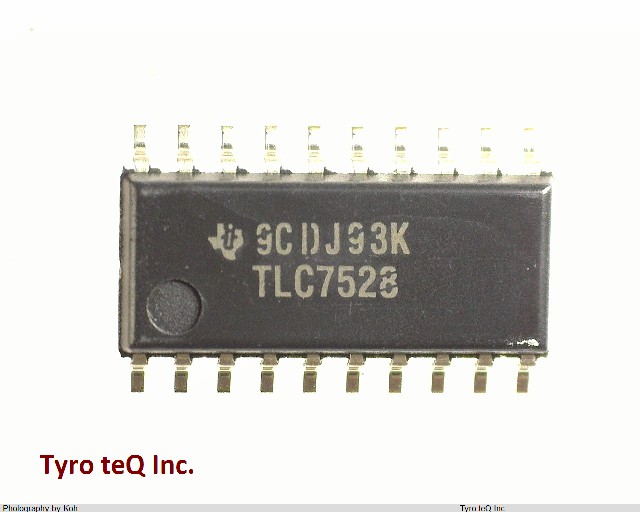

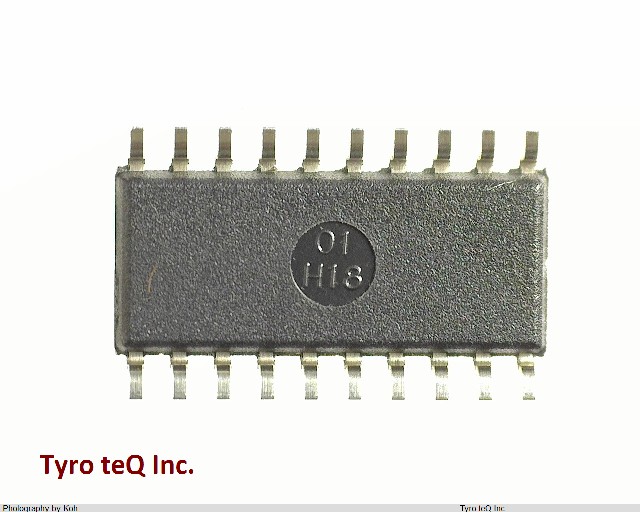

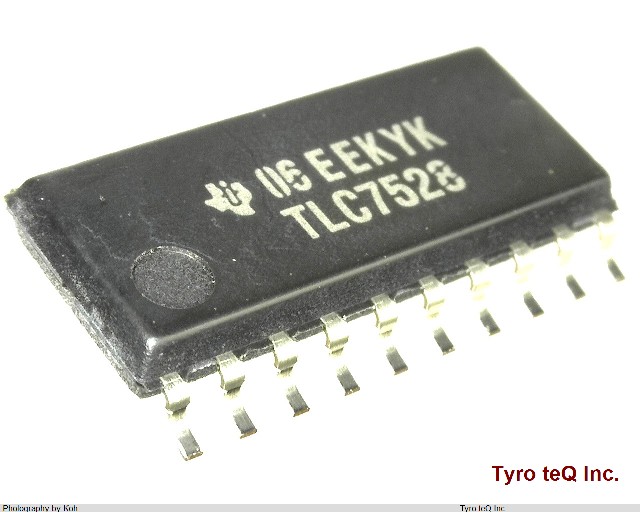

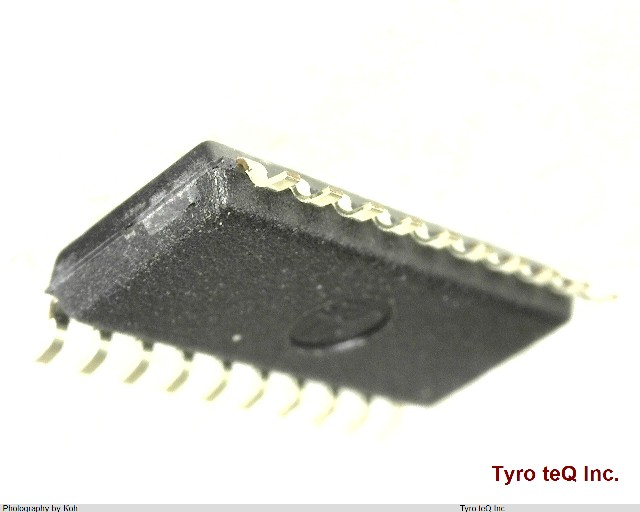

TLC7528CNS データシート

Name: TLC7528CNS
Brand: TI
SKU: 300026241-0000-0000-0000

TLC7528CNS - TI の商品詳細ページです。

２営業日以内に回答いたします

TLC7528CNS の詳細情報

型番	TLC7528CNS
メーカー	TI
データシート
Analog Output Voltage-Max	10 V
Analog Output Voltage-Min	-10 V
Converter Type	D/A CONVERTER
Input Bit Code	BINARY, OFFSET BINARY
Input Format	PARALLEL, 8 BITS
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e4
Length	12.6 mm
Linearity Error-Max (EL)	0.3906 %
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5/15 V
Qualification Status	Not Qualified
Sample Rate	10 MHz
Seated Height-Max	2 mm
Settling Time-Max	0.17 us
Settling Time-Nom (tstl)	0.1 us
Sub Category	Other Converters
Supply Current-Max	2 mA
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
