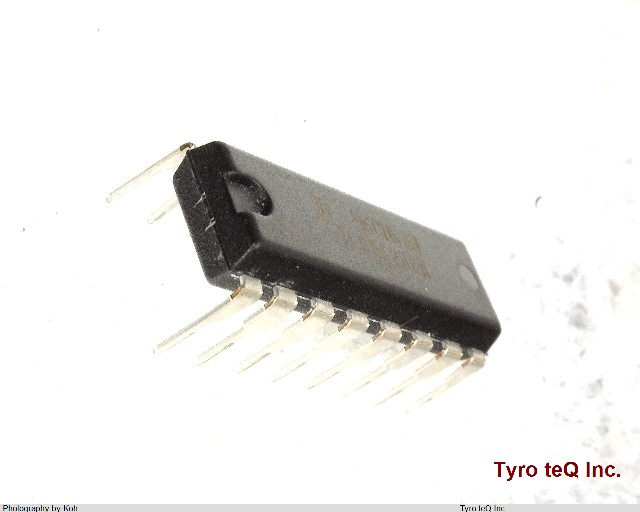

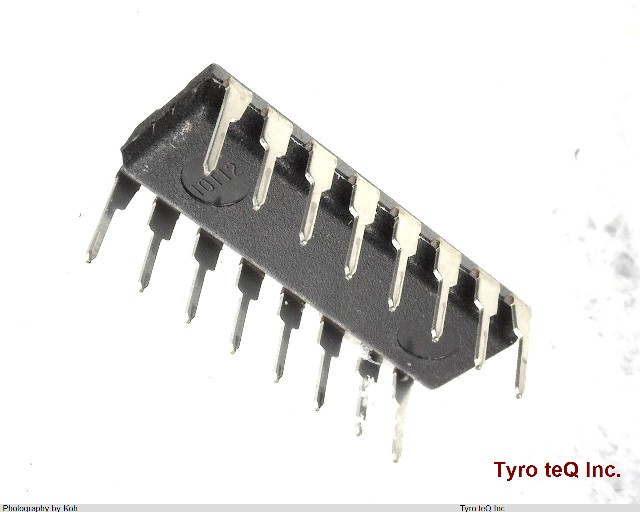

TLC5628CN データシート

Name: TLC5628CN
Brand: TI
SKU: 300009509-0000-0000-0000

TLC5628CN - TI の商品詳細ページです。

２営業日以内に回答いたします

TLC5628CN の詳細情報

型番	TLC5628CN
メーカー	TI
データシート
Converter Type	D/A CONVERTER
Input Bit Code	BINARY
Input Format	SERIAL
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e4
Length	19.305 mm
Linearity Error-Max (EL)	0.3906 %
Number of Bits	8
Number of Functions	8
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Sample Rate	0.045 MHz
Seated Height-Max	5.08 mm
Settling Time-Max	10 us
Settling Time-Nom (tstl)	10 us
Sub Category	Other Converters
Supply Current-Max	2 mA
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
