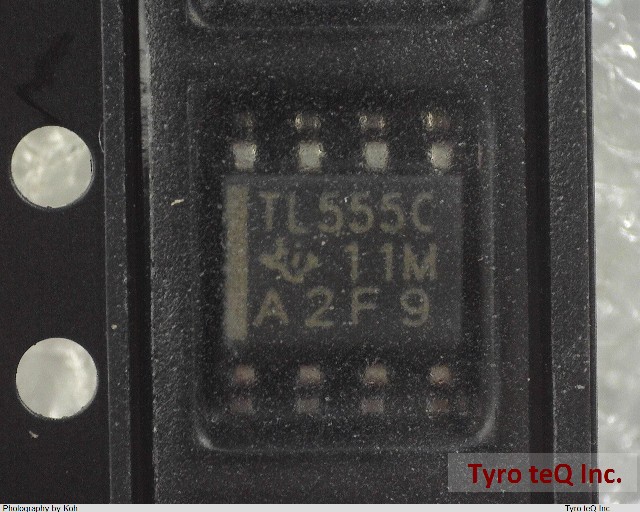

TLC555CDR データシート

Name: TLC555CDR
Brand: TI
SKU: 300009500-0000-0000-0000

TLC555CDR - TI の商品詳細ページです。

２営業日以内に回答いたします

TLC555CDR の詳細情報

型番	TLC555CDR
メーカー	TI
データシート
Additional Feature	IT CAN ALSO OPERATE AT 2 V OR 15 V NOMINAL SUPPLY
Analog IC - Other Type	PULSE; RECTANGULAR
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Frequency-Max	1.2 GHz
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Analog Waveform Generation Functions
Supply Current-Max (Isup)	0.4 mA
Supply Voltage-Max (Vsup)	15 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3.9 mm
