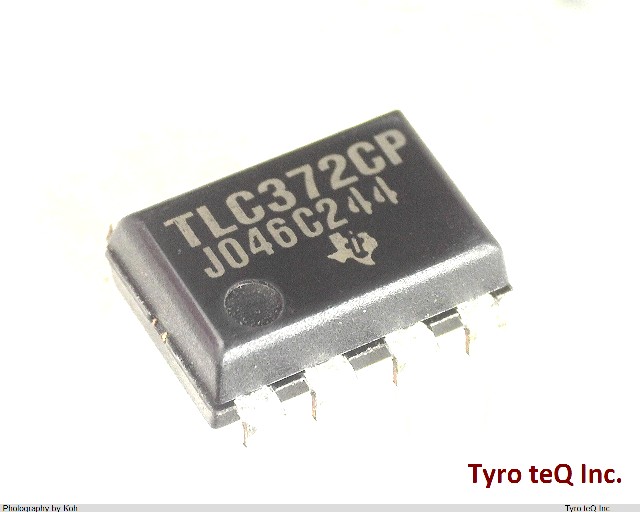

TLC372CP データシート

Name: TLC372CP
Brand: TI
SKU: 300005361-0000-0000-0000

TLC372CP - TI の商品詳細ページです。

２営業日以内に回答いたします

TLC372CP の詳細情報

型番	TLC372CP
メーカー	TI
データシート
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	0.0006 uA
Bias Current-Max (IIB) @25C	3.0E-5 uA
Input Offset Voltage-Max	5000 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e4
Length	4.4 mm
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Type	OPEN-COLLECTOR
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Response Time-Nom	650 ns
Seated Height-Max	1.2 mm
Sub Category	Comparator
Supply Current-Max	0.3 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3 mm
