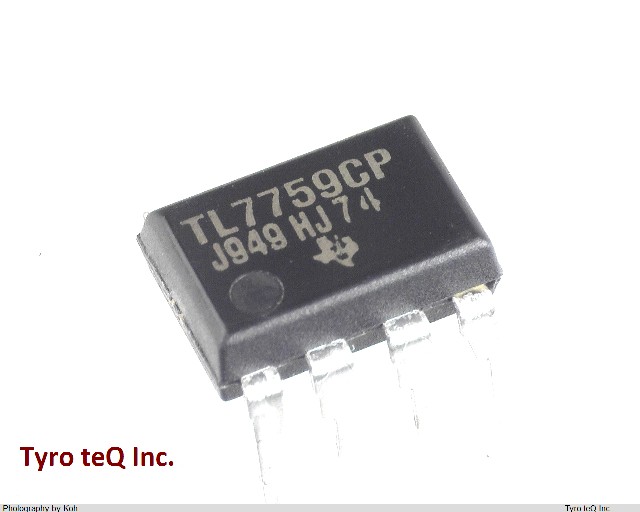

TL7759CP データシート

Name: TL7759CP
Brand: TI
SKU: 300000145-0000-0000-0000

TL7759CP - TI の商品詳細ページです。

２営業日以内に回答いたします

TL7759CP の詳細情報

型番	TL7759CP
メーカー	TI
データシート
Additional Feature	RESET THRESHOLD VOLTAGE IS 4.55V; POWER ON RESET GENERATOR
Adjustable Threshold	NO
Analog IC - Other Type	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e4
Length	4.4 mm
Moisture Sensitivity Level	1
Number of Channels	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1/7 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Other Analog ICs
Supply Current-Max (Isup)	2 mA
Supply Voltage-Max (Vsup)	7 V
Supply Voltage-Min (Vsup)	1 V
Supply Voltage-Nom (Vsup)	4.3 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Threshold Voltage-Nom	+4.55V V
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Width	3 mm
