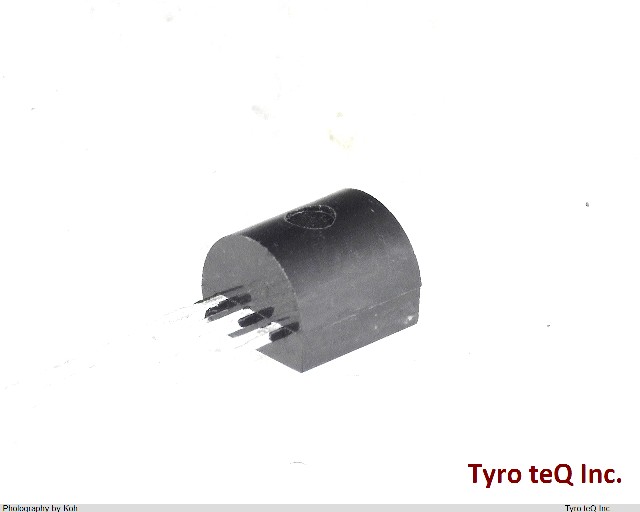

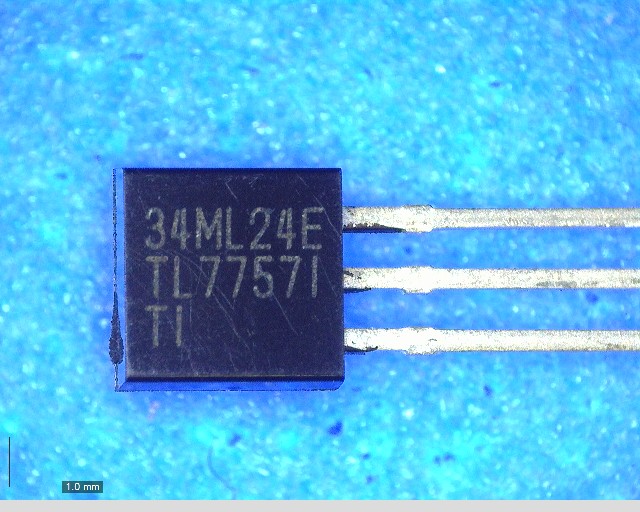

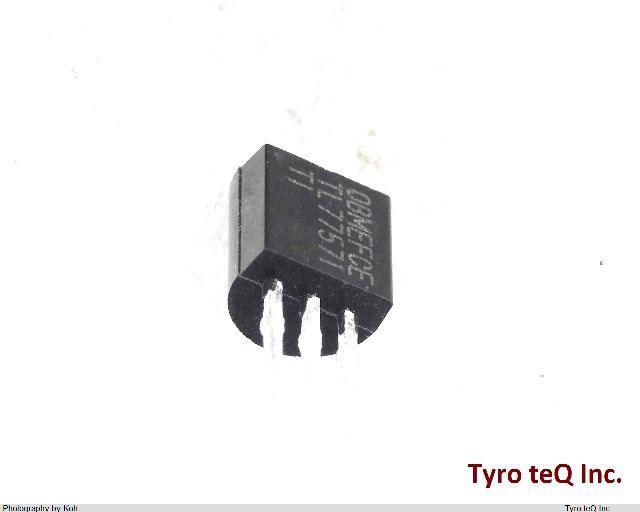

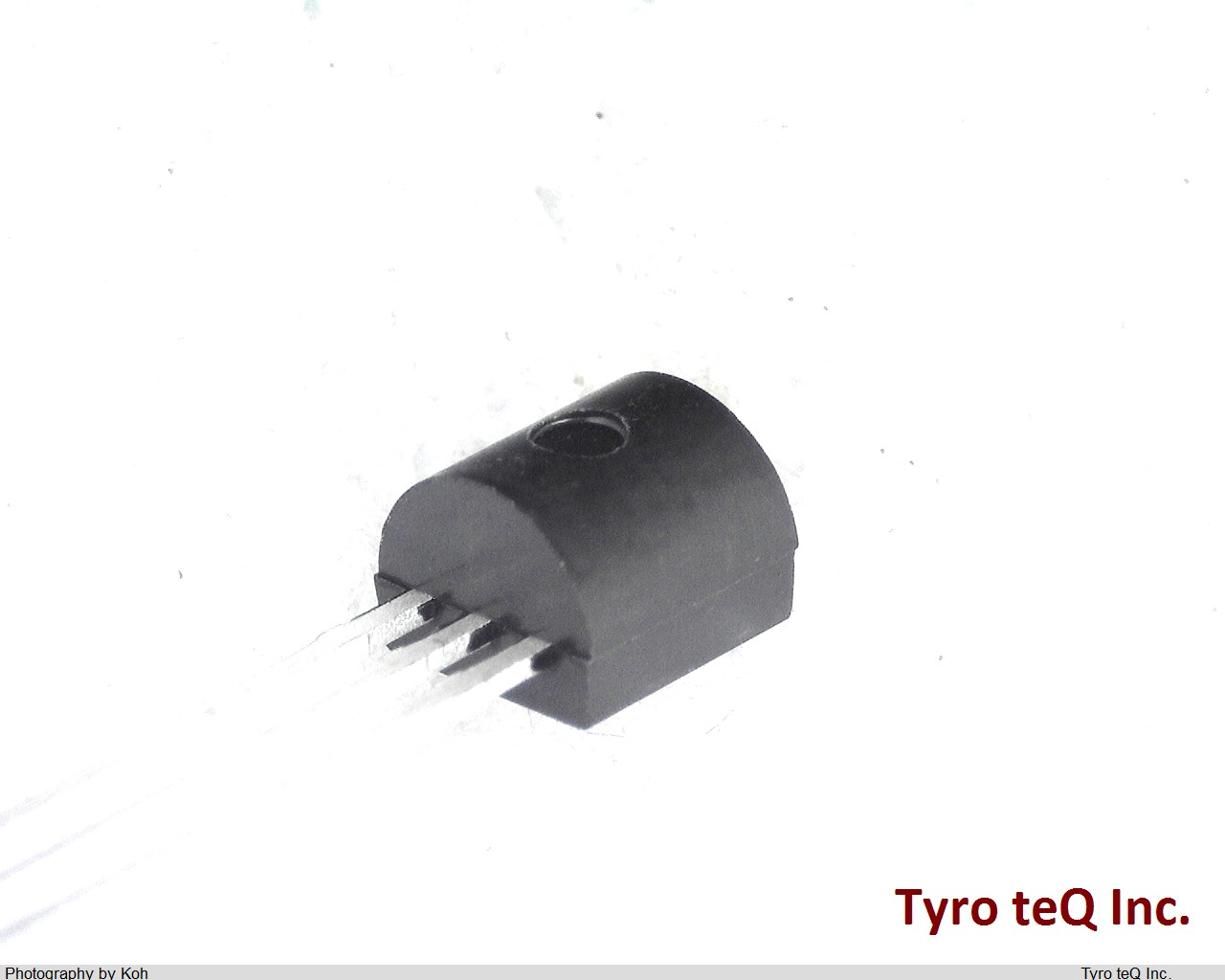

TL7757ILP データシート

Name: TL7757ILP
Brand: TI
SKU: 300025668-0000-0000-0000

TL7757ILP - TI の商品詳細ページです。

２営業日以内に回答いたします

TL7757ILP の詳細情報

型番	TL7757ILP
メーカー	TI
データシート
Additional Feature	RESET THRESHOLD VOLTAGE IS 4.55V
Adjustable Threshold	NO
Analog IC - Other Type	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code	O-PBCY-W3
JESD-609 Code	e3
Length	4.3 mm
Number of Channels	1
Number of Functions	1
Number of Terminals	3
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TO-92
Package Equivalence Code	SIP3,.1,50
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	1/7 V
Qualification Status	Not Qualified
Seated Height-Max	3.6 mm
Sub Category	Power Management Circuits
Supply Current-Max (Isup)	2 mA
Supply Voltage-Max (Vsup)	7 V
Supply Voltage-Min (Vsup)	1 V
Supply Voltage-Nom (Vsup)	4.3 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	WIRE
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Threshold Voltage-Nom	4.55 V
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.3 mm
