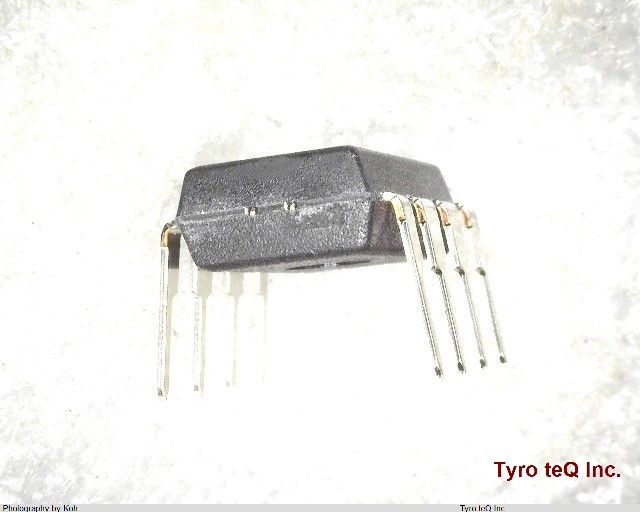

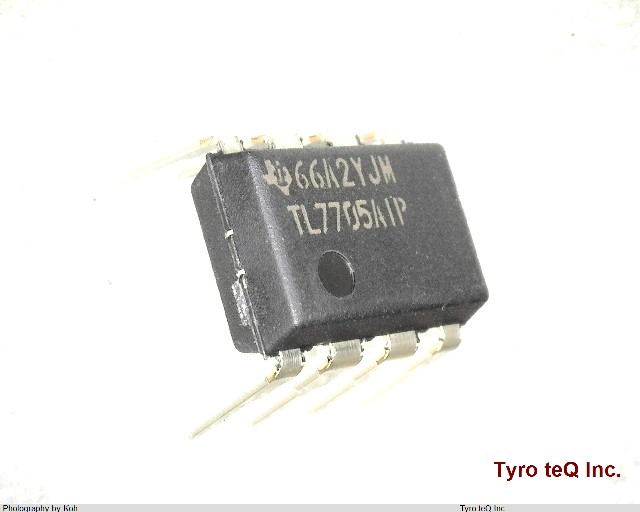

TL7705AIP

Name: TL7705AIP
Brand: TI
SKU: 300386486-0000-0000-0000

TL7705AIP - TI の商品詳細ページです。

２営業日以内に回答いたします

P-DIP チューブ品動作温度 -55℃ to 125℃

TL7705AIP の詳細情報

型番	TL7705AIP
メーカー	TI
Additional Feature	POWER ON RESET GENERATOR
Adjustable Threshold	NO
Analog IC - Other Type	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e3
Length	9.59 mm
Moisture Sensitivity Level	1
Number of Channels	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.5/18 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Power Management Circuits
Supply Current-Max (Isup)	3 mA
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	3.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Threshold Voltage-Nom	+4.55V V
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Width	7.62 mm
