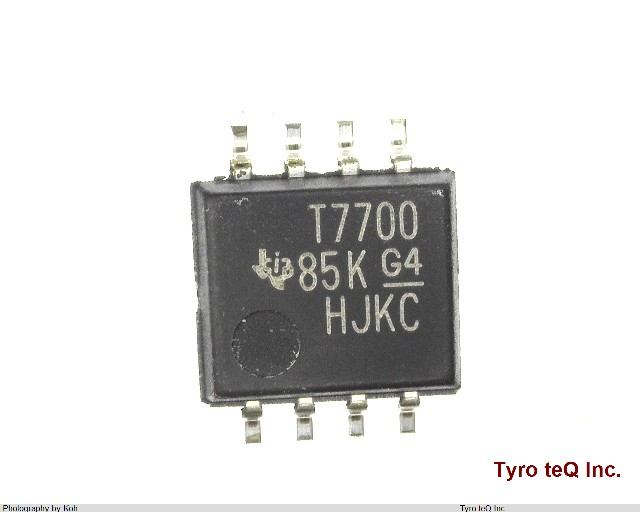

TL7700CPSE4 データシート

Name: TL7700CPSE4
Brand: TI
SKU: 300220959-0000-0000-0000

TL7700CPSE4 - TI の商品詳細ページです。

２営業日以内に回答いたします

TL7700CPSE4 の詳細情報

型番	TL7700CPSE4
メーカー	TI
データシート
Adjustable Threshold	YES
Analog IC - Other Type	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	6.2 mm
Moisture Sensitivity Level	1
Number of Channels	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Supply Voltage-Max (Vsup)	40 V
Supply Voltage-Min (Vsup)	1.8 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
