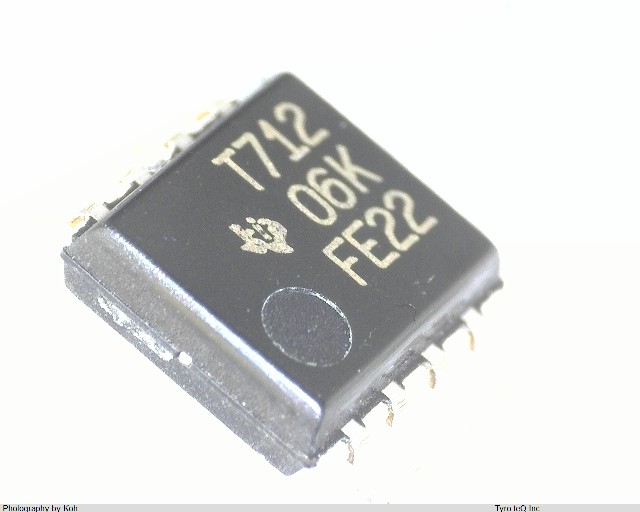

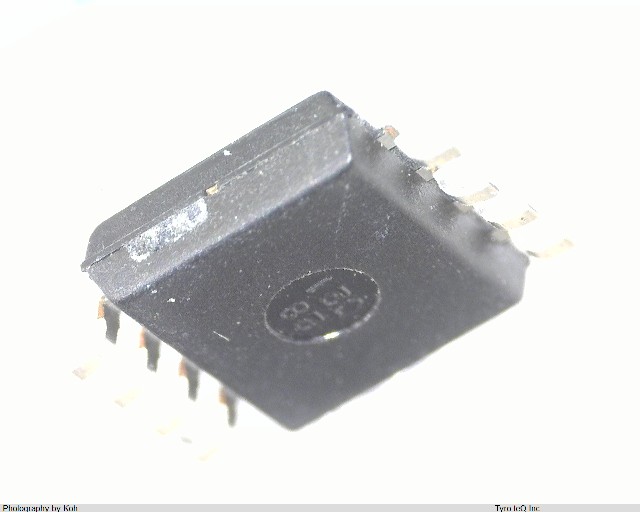

TL712CPS データシート

Name: TL712CPS
Brand: TI
SKU: 300010128-0000-0000-0000

TL712CPS - TI の商品詳細ページです。

２営業日以内に回答いたします

TL712CPS の詳細情報

型番	TL712CPS
メーカー	TI
データシート
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	600 uA
Bias Current-Max (IIB) @25C	600 uA
Input Offset Voltage-Max	5000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	6.2 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Type	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Response Time-Nom	25 ns
Seated Height-Max	2 mm
Sub Category	Comparator
Supply Current-Max	20 mA
Supply Voltage Limit-Max	7 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
