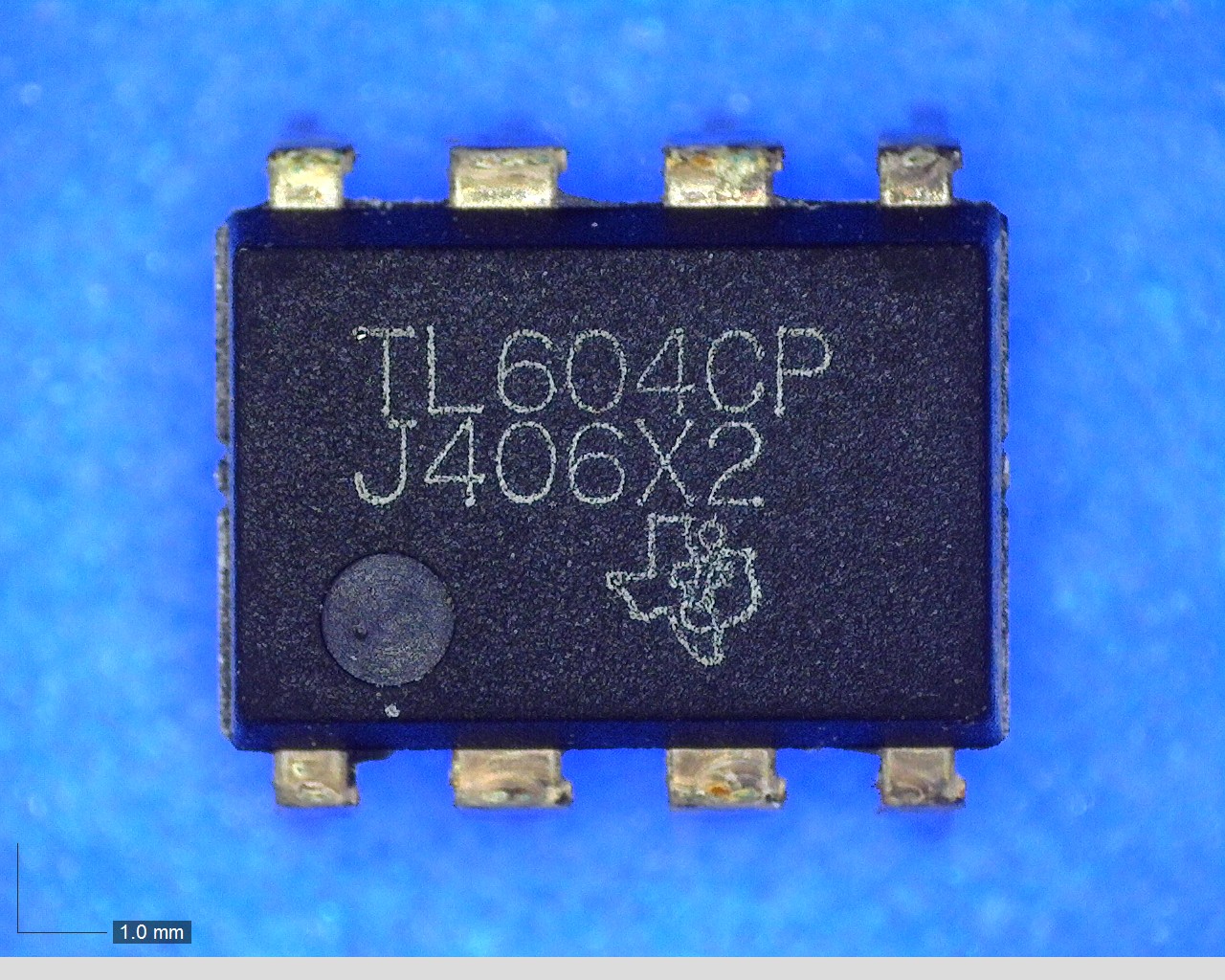

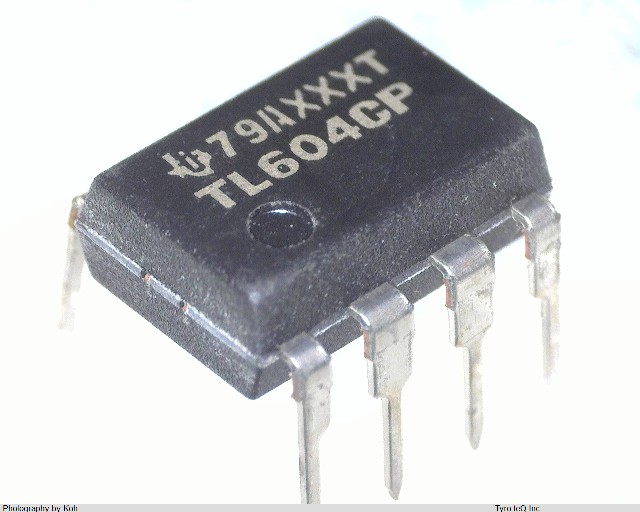

TL604CP データシート

Name: TL604CP
Brand: TI
SKU: 300025553-0000-0000-0000

TL604CP - TI の商品詳細ページです。

２営業日以内に回答いたします

TL604CP の詳細情報

型番	TL604CP
メーカー	TI
データシート
Analog IC - Other Type	SPDT
JESD-30 Code	R-PDIP-T8
Length	9.81 mm
Neg Supply Voltage-Max (Vsup)	-25 V
Neg Supply Voltage-Min (Vsup)	-5 V
Neg Supply Voltage-Nom (Vsup)	-20 V
Normal Position	NO/NC V
Number of Channels	1
Number of Functions	1
Number of Terminals	8
On-state Resistance-Max (Ron)	600 ohm
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	25 V
Supply Voltage-Min (Vsup)	5 V
Supply Voltage-Nom (Vsup)	10 V
Surface Mount	NO
Switch-off Time-Max	500 ns
Switch-on Time-Max	150 ns
Switching	MAKE-BEFORE-BREAK V
Technology	BIMOS
Temperature Grade	COMMERCIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
