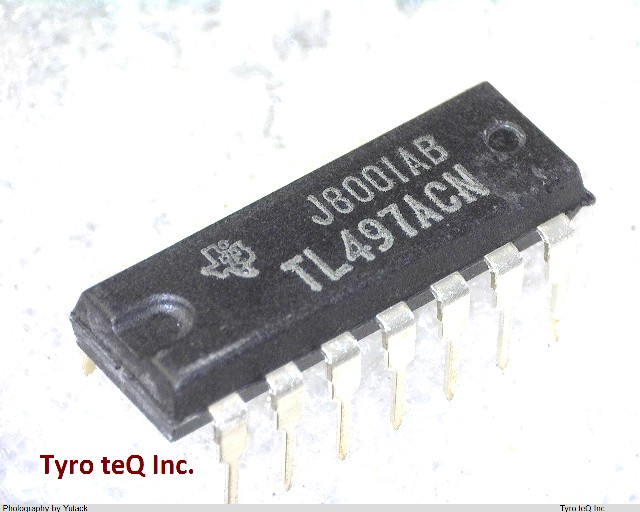

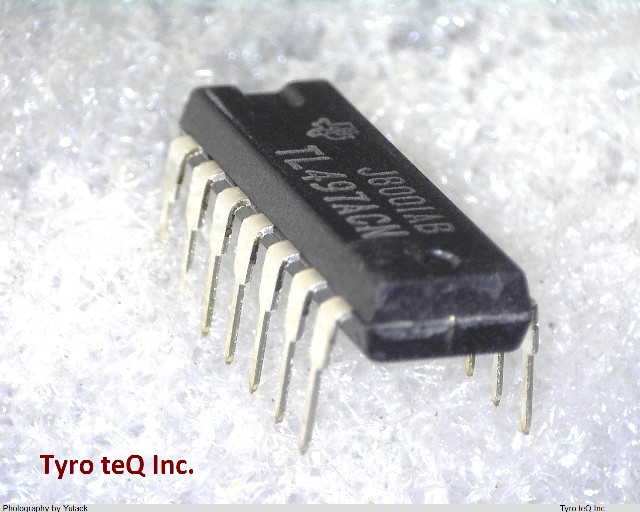

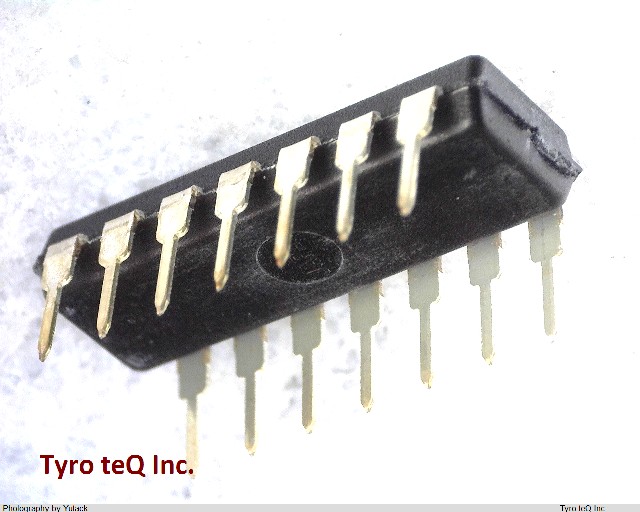

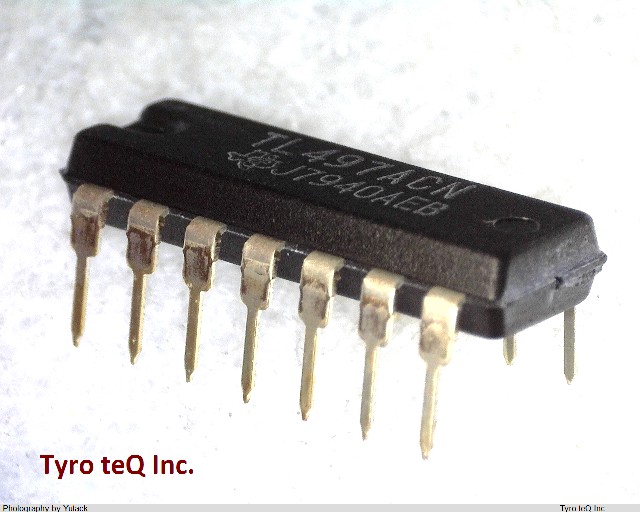

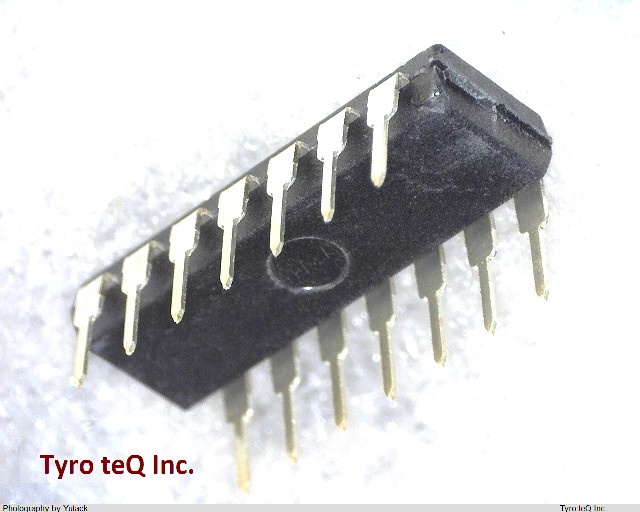

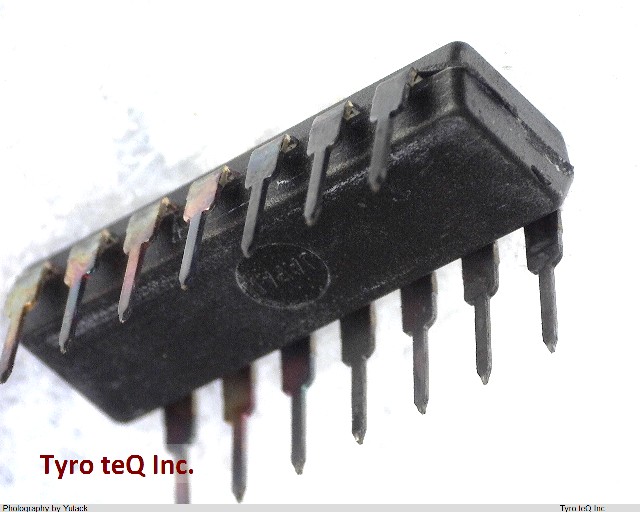

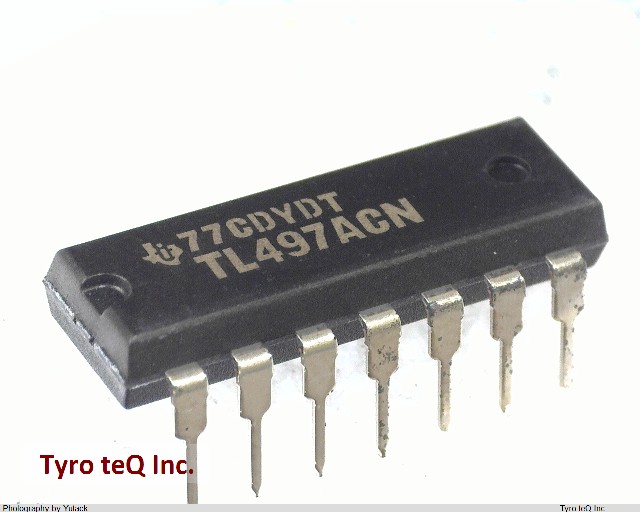

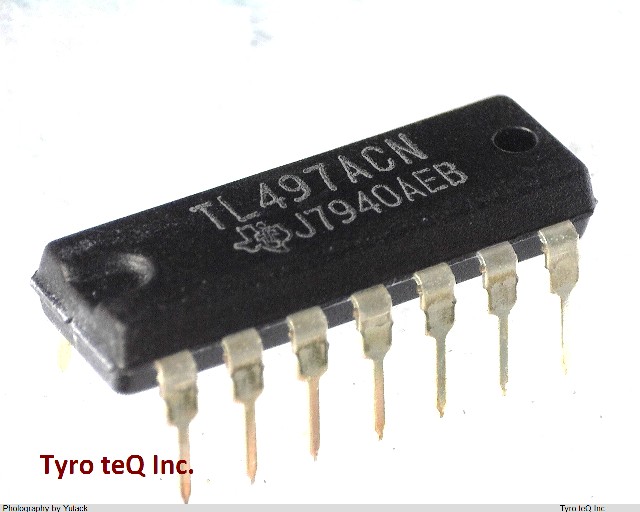

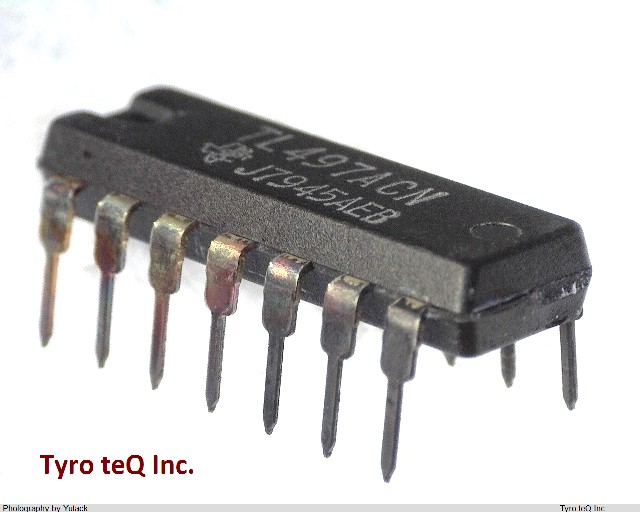

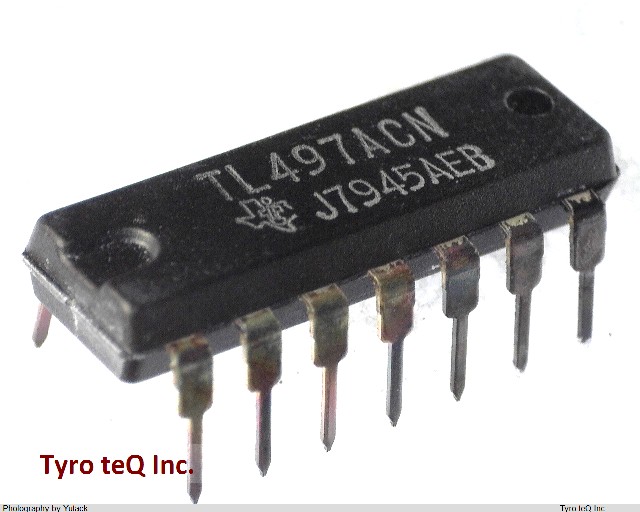

TL497ACN データシート

Name: TL497ACN
Brand: TI
SKU: 300000141-0000-0000-0000

TL497ACN - TI の商品詳細ページです。

２営業日以内に回答いたします

TL497ACN の詳細情報

型番	TL497ACN
メーカー	TI
データシート
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM 6.5-30 V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE FREQUENCY MODULATION
Input Voltage-Max	12 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	6 V
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e4
Length	10.2 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Current-Max	0.5 A
Output Voltage-Max	30 V
Output Voltage-Min	-25 V
Output Voltage-Nom	1.2 V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	15 mA
Surface Mount	NO
Switcher Configuration	BUCK-BOOST
Switching Frequency-Max	50 kHz
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
