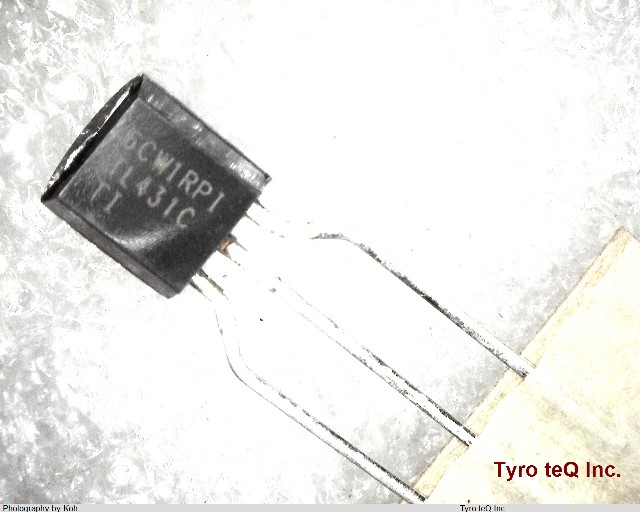

TL431CLPR

Name: TL431CLPR
Brand: TI
SKU: 300010085-0000-0000-0000

TL431CLPR - TI の商品詳細ページです。

２営業日以内に回答いたします

TL431CLPR の詳細情報

型番	TL431CLPR
メーカー	TI
Additional Feature	OUTPUT VOLTAGE ADJUSTABLE FROM 2.495V TO 36V
Analog IC - Other Type	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code	O-PBCY-T3
JESD-609 Code	e0
Length	4.3 mm
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Current-Max	0.1 A
Output Voltage-Max	2.55 V
Output Voltage-Min	2.423 V
Output Voltage-Nom	2.495 V
Package Body Material	PLASTIC/EPOXY
Package Code	TO-92
Package Equivalence Code	SIP3,.1,50
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	235
Qualification Status	Not Qualified
Seated Height-Max	3.6 mm
Sub Category	Voltage References
Supply Current-Max (Isup)	1 mA
Supply Voltage-Max (Vsup)	36 V
Supply Voltage-Min (Vsup)	2.495 V
Surface Mount	NO
Technology	BIPOLAR
Temp Coef of Voltage-Max	92 ppm/Cel
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Trim/Adjustable Output	NO V
Voltage Tolerance-Max	2 %
Width	4.3 mm
