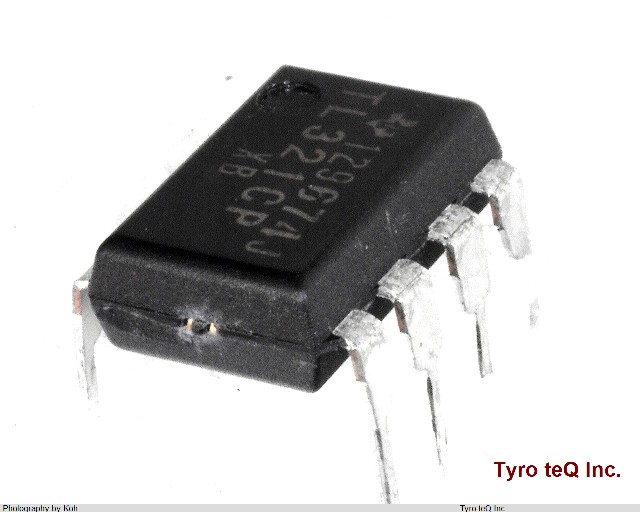

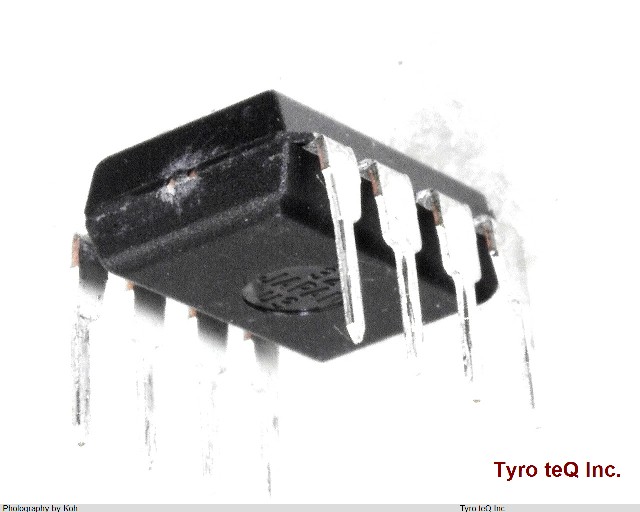

TL321CP データシート

Name: TL321CP
Brand: TI
SKU: 300223700-0000-0000-0000

TL321CP - TI の商品詳細ページです。

２営業日以内に回答いたします

TL321CP の詳細情報

型番	TL321CP
メーカー	TI
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	-0.5 uA
Bias Current-Max (IIB) @25C	0.25 uA
Common-mode Reject Ratio-Nom	85 dB
Frequency Compensation	YES
Input Offset Voltage-Max	9000 uV
JESD-30 Code	R-PDIP-T8
Length	9.81 mm
Low-Bias	NO
Low-Offset	NO
Micropower	NO
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power	NO
Power Supplies	5/30 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Operational Amplifier
Supply Current-Max	2 mA
Supply Voltage Limit-Max	32 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	600 kHz
Voltage Gain-Min	15000
Wideband	NO
Width	7.62 mm
