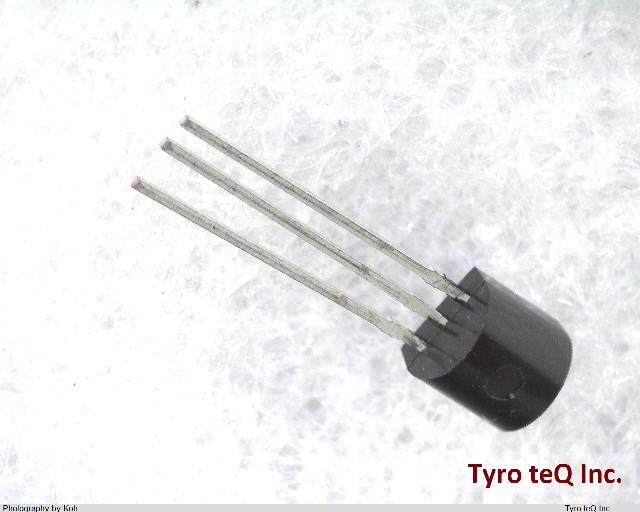

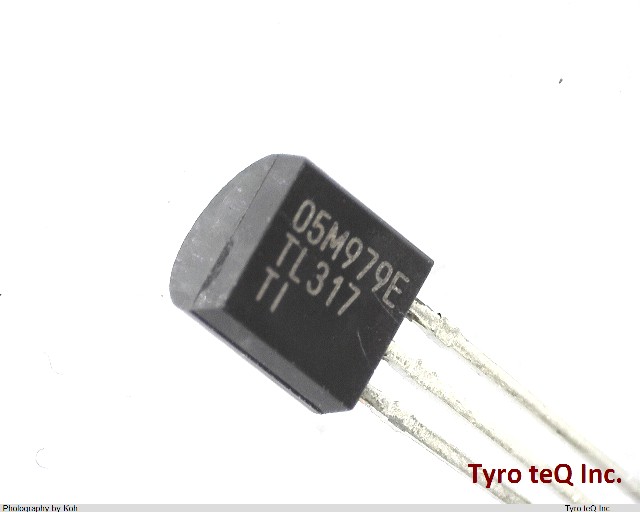

TL317LP データシート

Name: TL317LP
Brand: TI
SKU: 300390260-0000-0000-0000

TL317LP - TI の商品詳細ページです。

２営業日以内に回答いたします

TL317LP の詳細情報

型番	TL317LP
メーカー	TI
データシート
Adjustability	ADJUSTABLE
Input-Output Voltage Differential-Max	35 V
Input-Output Voltage Differential-Min	5 V
JESD-30 Code	O-PBCY-W3
JESD-609 Code	e3
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-20 Cel
Output Current1-Max	0.1 A
Output Voltage1-Max	32 V
Output Voltage1-Min	1.2 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SIP3,.1,50
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	Matte Tin (Sn)
Terminal Form	WIRE
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
