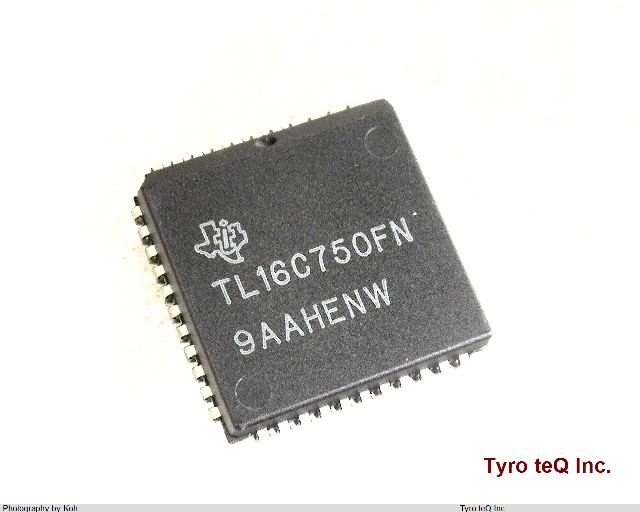

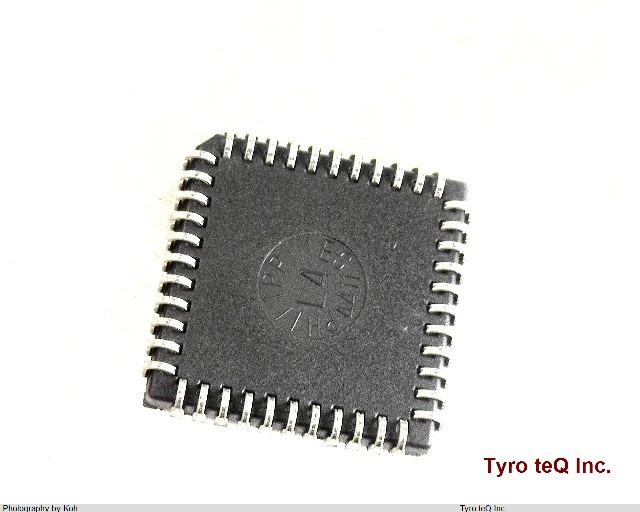

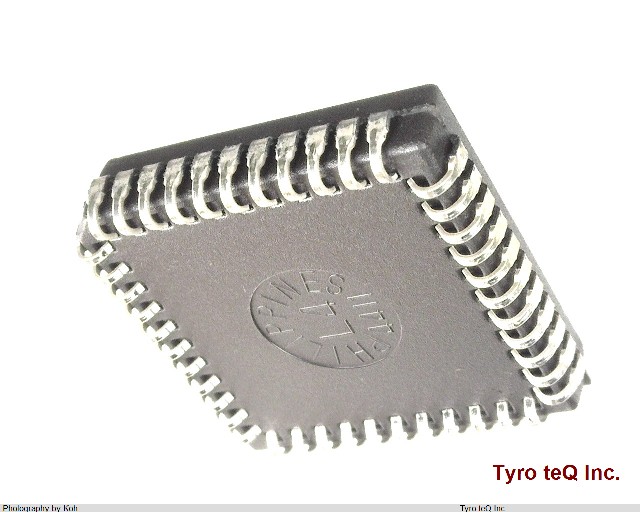

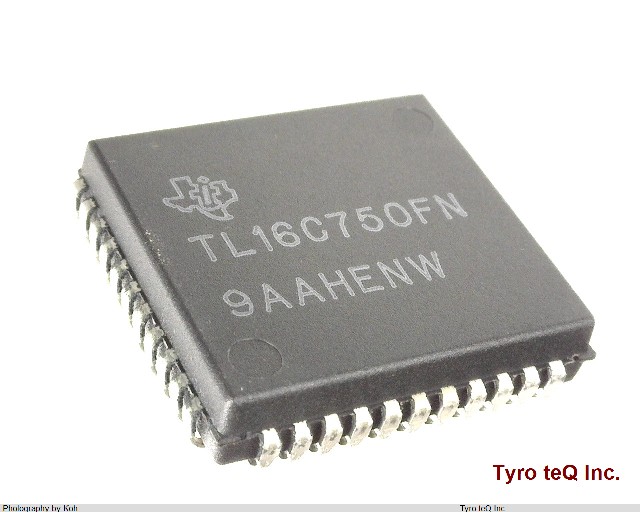

TL16C750FN データシート

Name: TL16C750FN
Brand: TI
SKU: 300025284-0000-0000-0000

TL16C750FN - TI の商品詳細ページです。

２営業日以内に回答いたします

TL16C750FN の詳細情報

型番	TL16C750FN
メーカー	TI
データシート
Additional Feature	ALSO OPERATES AT 3.3V MINIMUM SUPPLY AT 14MHZ
Address Bus Width	3
Boundary Scan	NO
Clock Frequency-Max	16 MHz
Communication Protocol	ASYNC, BIT
Data Transfer Rate-Max	0.125 MBps
External Data Bus Width	8
JESD-30 Code	S-PQCC-J44
JESD-609 Code	e4
Length	16.585 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of Serial I/Os	1
Number of Terminals	44
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC44,.7SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3/5 V
Qualification Status	Not Qualified
Seated Height-Max	4.57 mm
Sub Category	Serial IO/Communication Controllers
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	16.585 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
