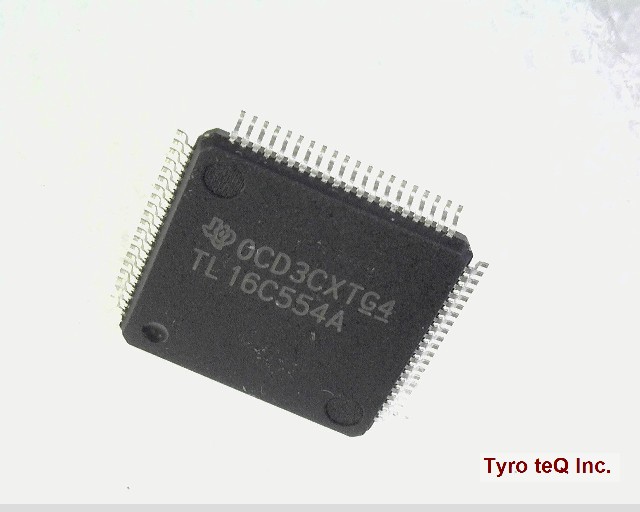

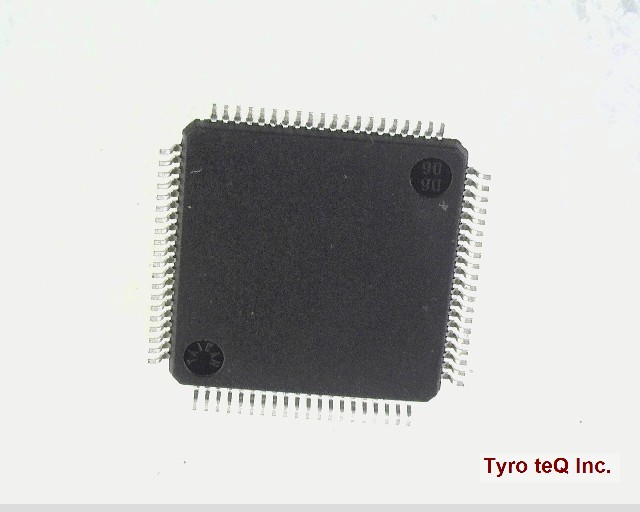

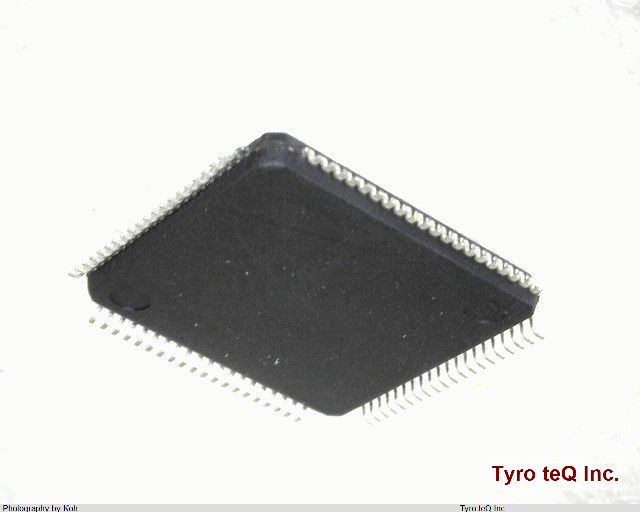

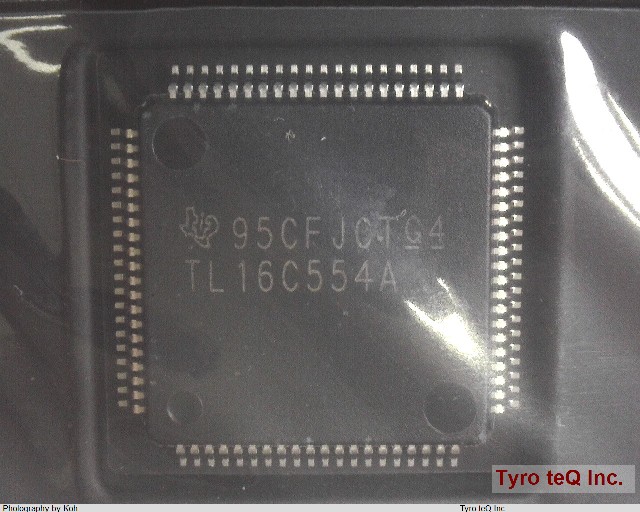

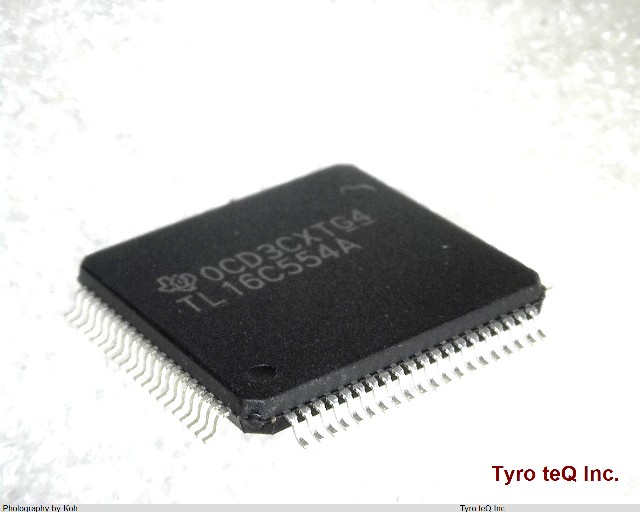

TL16C554APNR データシート

Name: TL16C554APNR
Brand: TI
SKU: 300092387-0000-0000-0000

TL16C554APNR - TI の商品詳細ページです。

２営業日以内に回答いたします

TL16C554APNR の詳細情報

型番	TL16C554APNR
メーカー	TI
データシート
Additional Feature	ALSO OPERATES AT 5 V SUPPLY
Address Bus Width	3
Boundary Scan	NO
Clock Frequency-Max	16 MHz
Communication Protocol	ASYNC, BIT
Data Encoding/Decoding Method	NRZ
Data Transfer Rate-Max	0.125 MBps
External Data Bus Width	8
JESD-30 Code	S-PQFP-G80
JESD-609 Code	e4
Length	12 mm
Low Power Mode	NO
Moisture Sensitivity Level	3
Number of Serial I/Os	4
Number of Terminals	80
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP80,.55SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3/5 V
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Serial IO/Communication Controllers
Supply Current-Max	50 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	12 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
