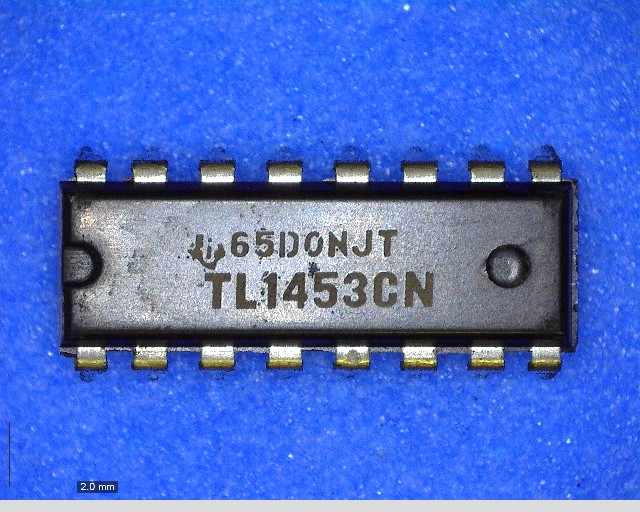

TL1453CN

Name: TL1453CN
Brand: TI
SKU: 300025242-0000-0000-0000

TL1453CN - TI の商品詳細ページです。

２営業日以内に回答いたします

TL1453CN の詳細情報

型番	TL1453CN
メーカー	TI
Analog IC - Other Type	DUAL SWITCHING CONTROLLER
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	40 V
Input Voltage-Min	3.6 V
Input Voltage-Nom	6 V
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e4
Length	10.2 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Output Current-Max	0.021 A
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	NO
Switcher Configuration	SINGLE
Switching Frequency-Max	500 kHz
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
