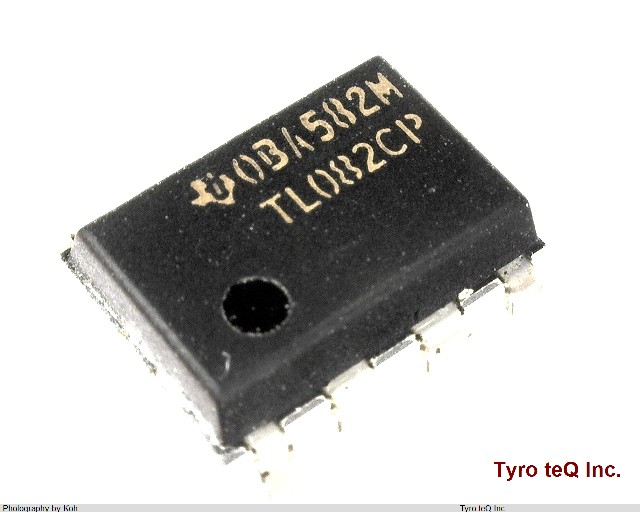

TL082CP データシート

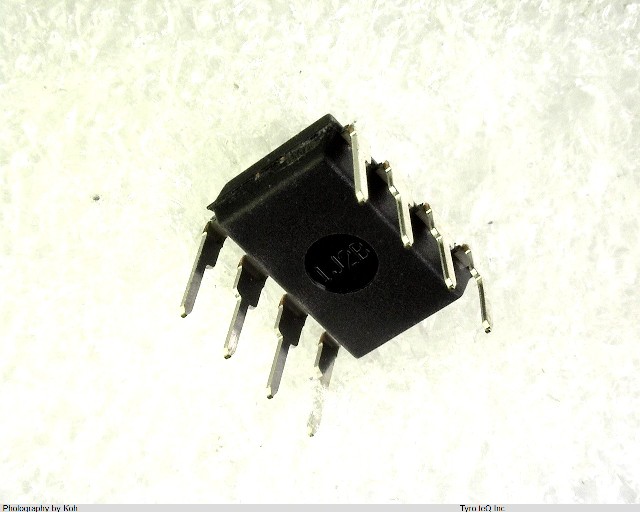

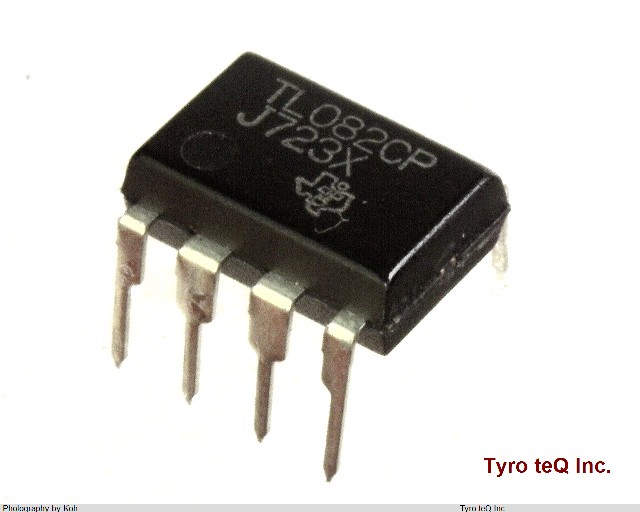

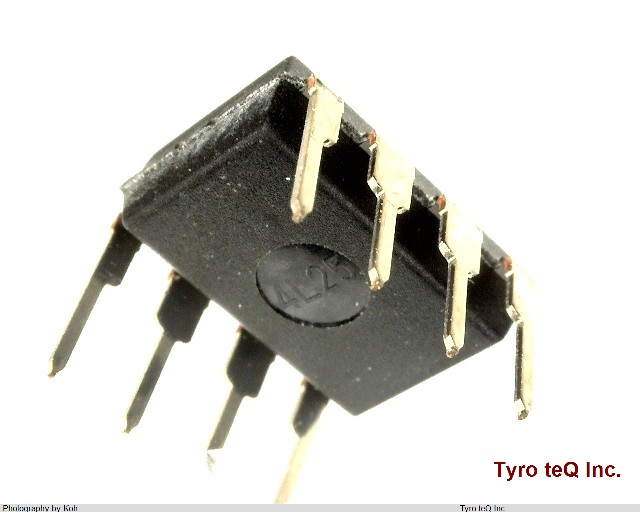

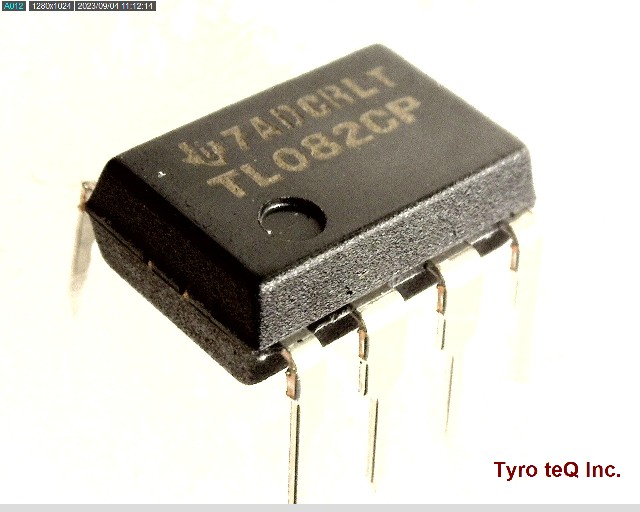

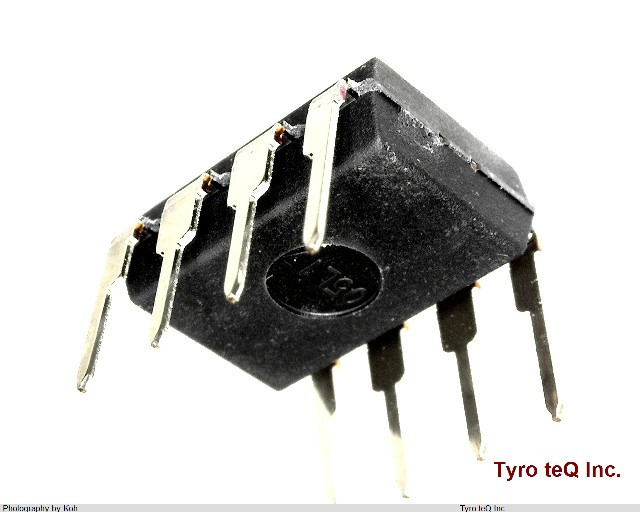

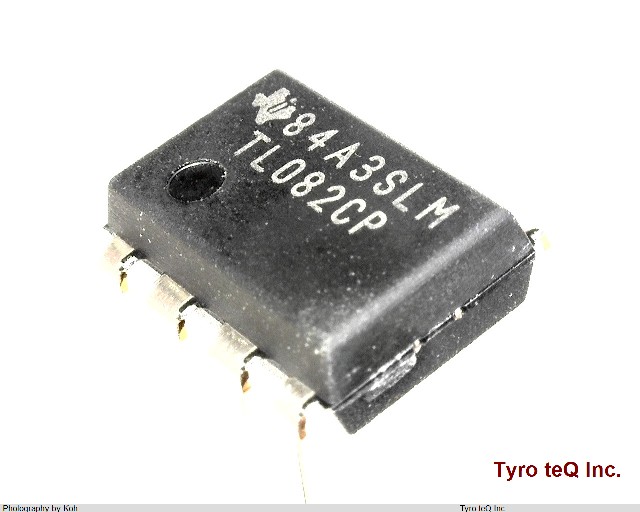

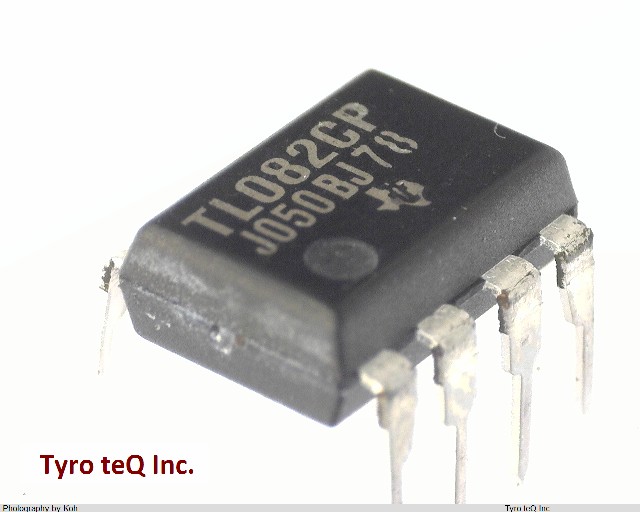

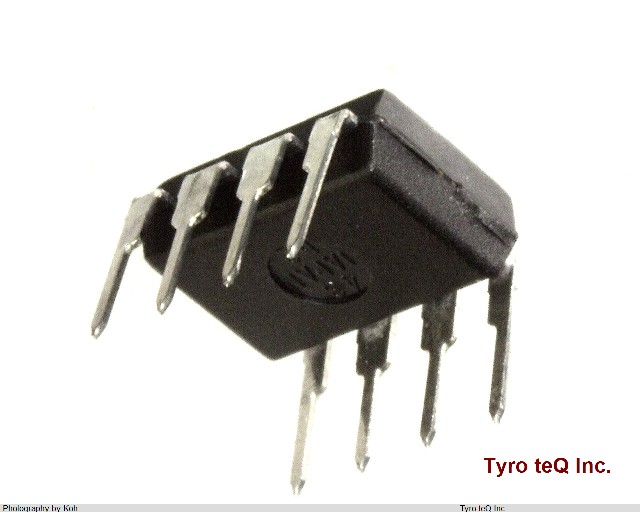

Name: TL082CP
Brand: TI
SKU: 300000022-0000-0000-0000

TL082CP - TI の商品詳細ページです。

２営業日以内に回答いたします

TL082CP の詳細情報

型番	TL082CP
メーカー	TI
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.0004 uA
Bias Current-Max (IIB) @25C	0.0002 uA
Common-mode Reject Ratio-Min	70 dB
Common-mode Reject Ratio-Nom	70 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.0001 uA
Input Offset Voltage-Max	6000 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	4.4 mm
Low-Bias	YES
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	235
Power	NO
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Slew Rate-Min	8 V/us
Slew Rate-Nom	13 V/us
Sub Category	Operational Amplifier
Supply Current-Max	2.5 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIFET
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	3000 kHz
Voltage Gain-Min	15000
Width	3 mm
