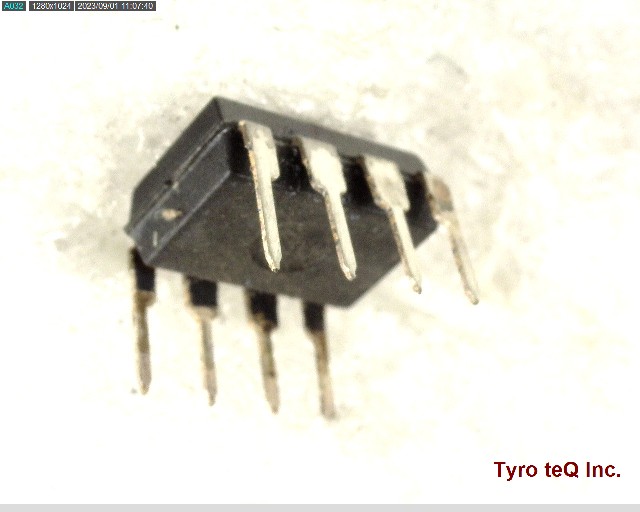

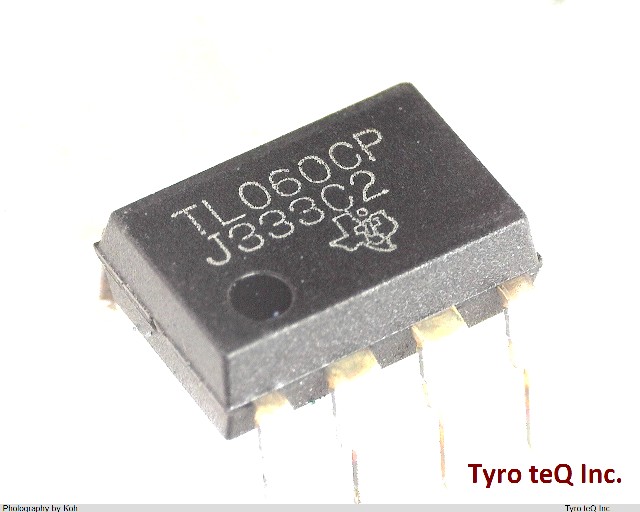

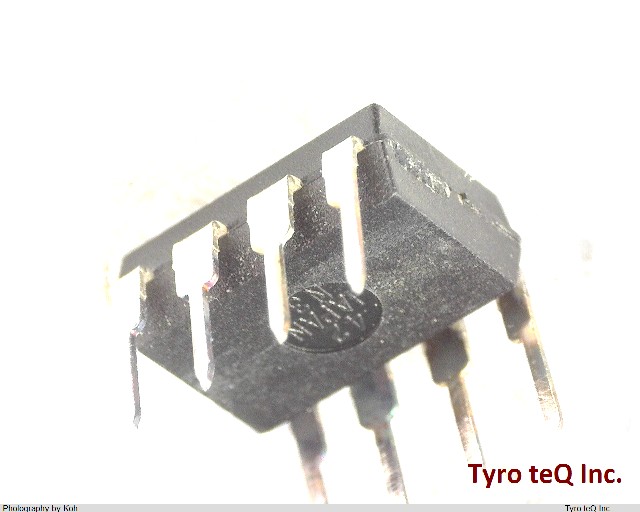

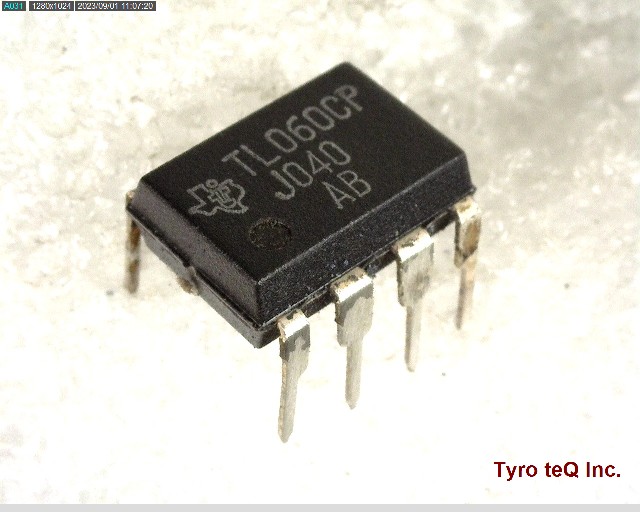

TL060CP データシート

Name: TL060CP
Brand: TI
SKU: 300025062-0000-0000-0000

TL060CP - TI の商品詳細ページです。

２営業日以内に回答いたします

TL060CP の詳細情報

型番	TL060CP
メーカー	TI
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.01 uA
Bias Current-Max (IIB) @25C	0.0004 uA
Common-mode Reject Ratio-Nom	86 dB
Frequency Compensation	NO
Input Offset Voltage-Max	20000 uV
JESD-30 Code	R-PDIP-T8
Length	9.81 mm
Low-Bias	YES
Low-Offset	NO
Micropower	YES
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Slew Rate-Min	1.5 V/us
Slew Rate-Nom	3.5 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.25 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	1000 kHz
Voltage Gain-Min	3000
Width	7.62 mm
