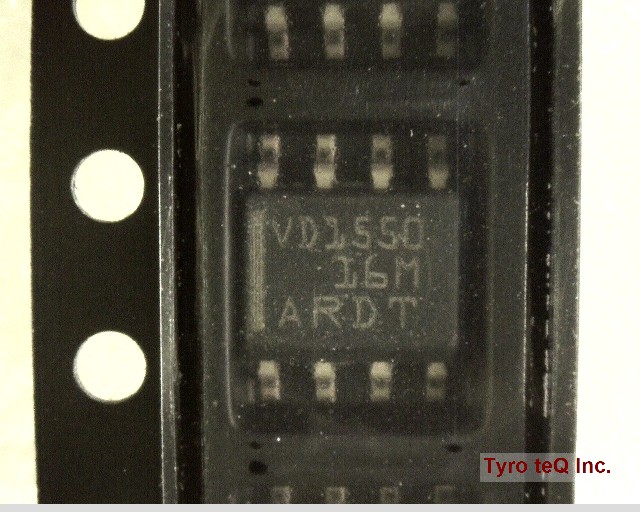

THVD1550DR

Name: THVD1550DR
Brand: TI
SKU: 300395989-0000-0000-0000

THVD1550DR - TI の商品詳細ページです。

２営業日以内に回答いたします

THVD1550DR の詳細情報

型番	THVD1550DR
メーカー	TI
Differential Output	YES
Driver Number of Bits	1
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-485-A; TIA-485-A
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	4.905 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Receive Delay-Max	45 ns
Receiver Number of Bits	1
Seated Height-Max	1.75 mm
Supply Current-Max	1 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Supply Voltage1-Max	5.5 V
Supply Voltage1-Min	4.5 V
Supply Voltage1-Nom	5 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	16 ns
Width	3.895 mm
