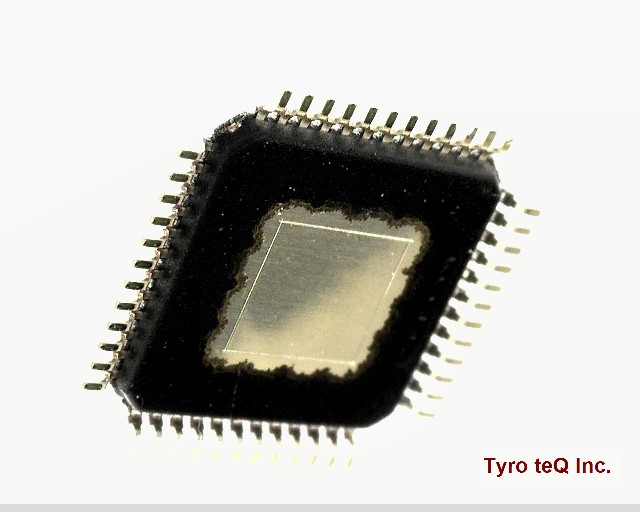

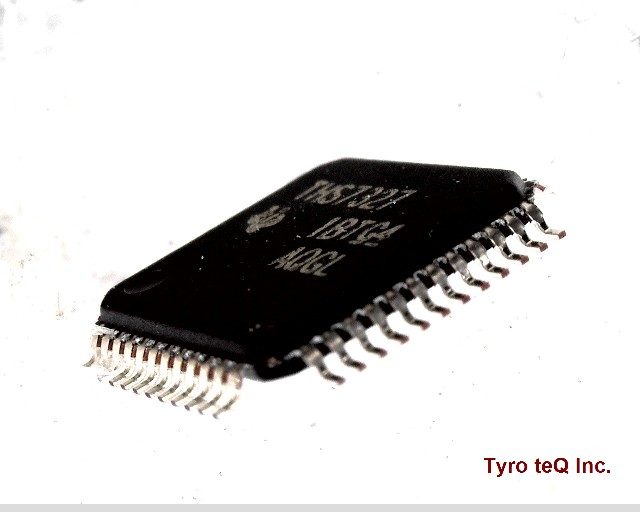

THS7327PHP データシート

Name: THS7327PHP
Brand: TI
SKU: 300090680-0000-0000-0000

THS7327PHP - TI の商品詳細ページです。

２営業日以内に回答いたします

THS7327PHP の詳細情報

型番	THS7327PHP
メーカー	TI
データシート
Amplifier Type	BUFFER
Average Bias Current-Max (IIB)	3.5 uA
Bandwidth (3dB)-Nom	500 MHz
JESD-30 Code	S-PQFP-G48
JESD-609 Code	e4
Length	7 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	48
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Min	0.045 A
Package Body Material	PLASTIC/EPOXY
Package Code	HTFQFP
Package Shape	SQUARE
Package Style	FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Slew Rate-Nom	1050 V/us
Sub Category	Buffer Amplifier
Supply Voltage Limit-Max	5.5 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7 mm
