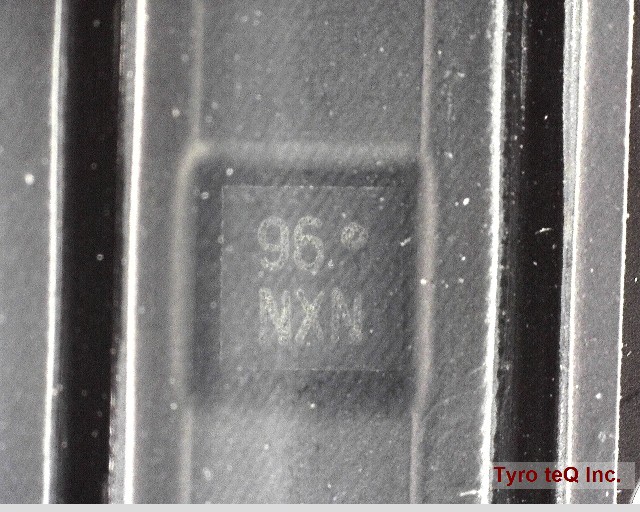

THS7319IZSVT データシート

Name: THS7319IZSVT
Brand: TI
SKU: 300297609-0000-0000-0000

THS7319IZSVT - TI の商品詳細ページです。

２営業日以内に回答いたします

THS7319IZSVT の詳細情報

型番	THS7319IZSVT
メーカー	TI
データシート
Bandwidth-Nom	13500 kHz
Consumer IC Type	VIDEO AMPLIFIER
JESD-30 Code	S-PBGA-B9
Length	1.5 mm
Moisture Sensitivity Level	2
Number of Channels	3
Number of Functions	1
Number of Terminals	9
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	VFBGA
Package Equivalence Code	BGA9,3X3,20
Package Shape	SQUARE
Package Style	GRID ARRAY, VERY THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2.6/5 V
Qualification Status	Not Qualified
Seated Height-Max	0.45 mm
Sub Category	Audio/Video Amplifiers
Supply Current-Max	4.5 mA
Supply Voltage-Max (Vsup)	5 V
Supply Voltage-Min (Vsup)	2.6 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Form	BALL
Terminal Pitch	0.5 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	1.5 mm
