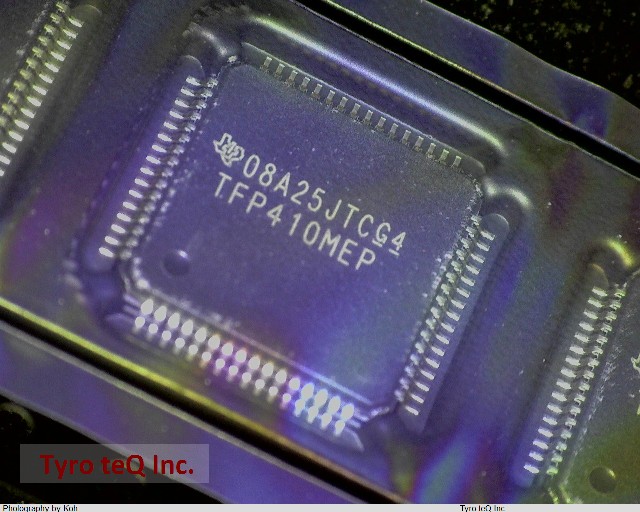

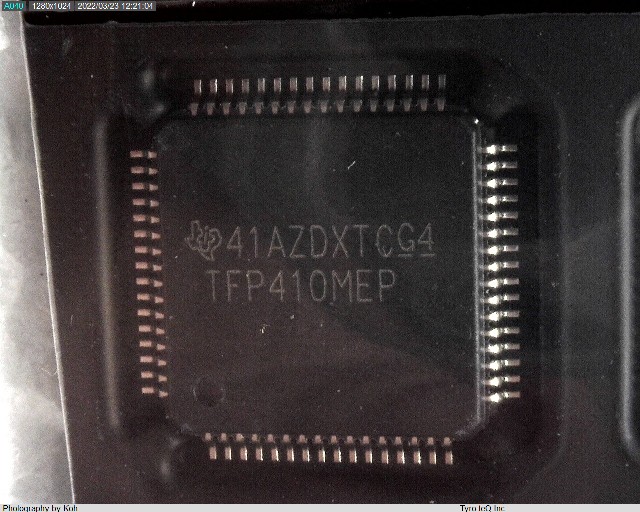

TFP410MPAPREP データシート

Name: TFP410MPAPREP
Brand: TI
SKU: 300088253-0000-0000-0000

TFP410MPAPREP - TI の商品詳細ページです。

２営業日以内に回答いたします

TFP410MPAPREP の詳細情報

型番	TFP410MPAPREP
メーカー	TI
データシート
Data Input Mode	SERIAL
Display Mode	DIGIT
Input Characteristics	STANDARD
Interface IC Type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 Code	S-PQFP-G64
JESD-609 Code	e4
Length	10 mm
Moisture Sensitivity Level	3
Multiplexed Display Capability	NO
Number of Functions	1
Number of Segments	1
Number of Terminals	64
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	HTFQFP
Package Equivalence Code	TQFP64,.47SQ
Package Shape	SQUARE
Package Style	FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	250 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	MILITARY
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	10 mm
fmax-Min	165 MHz
