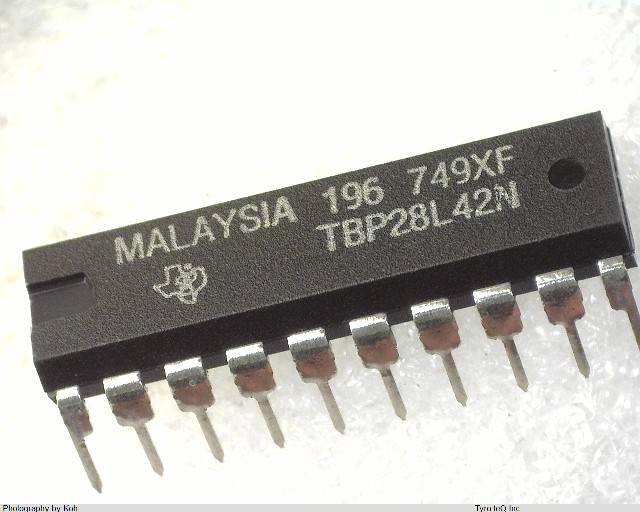

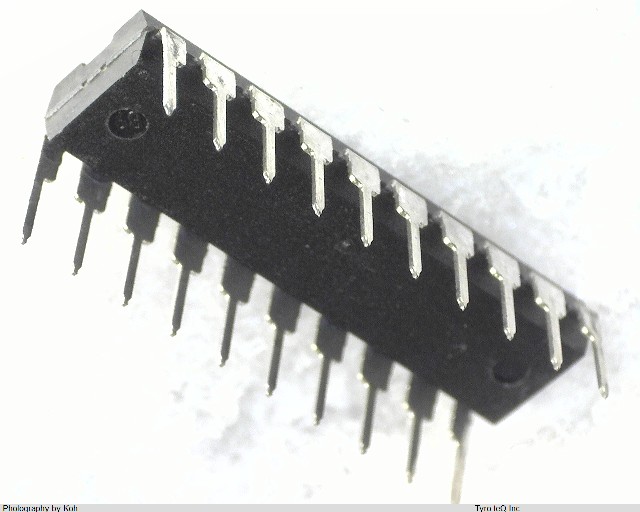

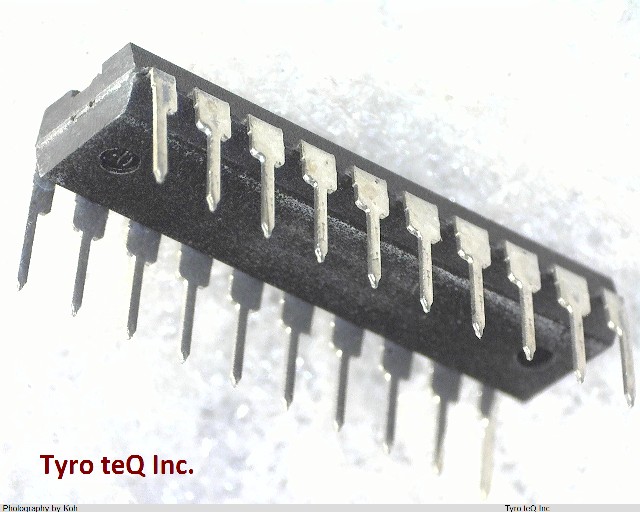

TBP28L42N データシート

Name: TBP28L42N
Brand: TI
SKU: 300016447-0000-0000-0000

TBP28L42N - TI の商品詳細ページです。

２営業日以内に回答いたします

TBP28L42N の詳細情報

型番	TBP28L42N
メーカー	TI
データシート
Access Time-Max	95 ns
JESD-30 Code	R-PDIP-T20
Length	24.325 mm
Memory Density	4096 bit
Memory IC Type	OTP ROM
Memory Width	8
Number of Functions	1
Number of Terminals	20
Number of Words	512 words
Number of Words Code	512
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	512X8
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	OTP ROMs
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
