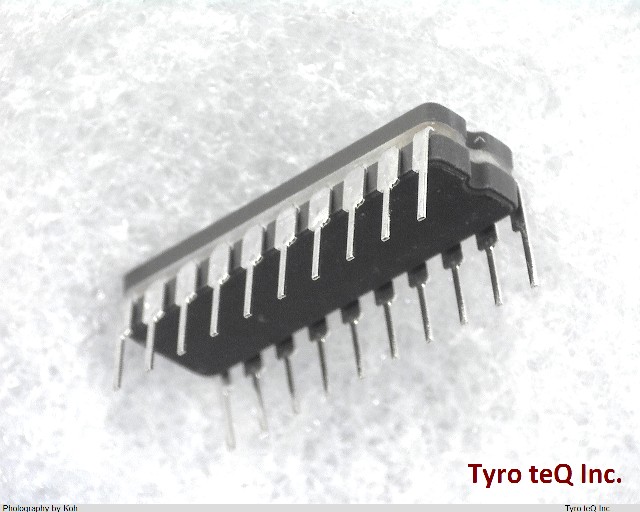

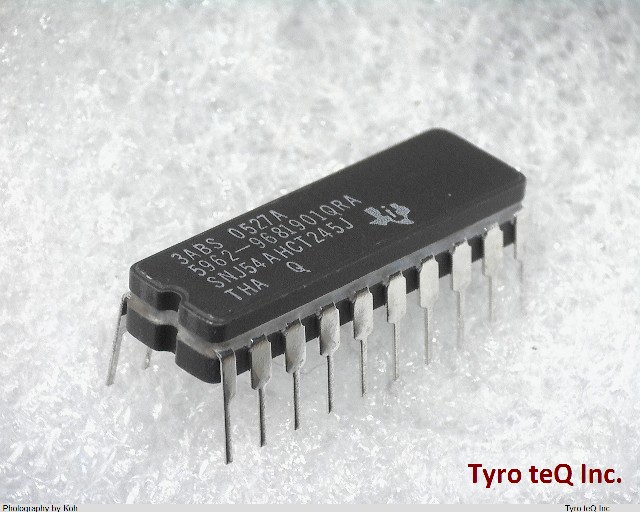

SNJ54AHCT245J

Name: SNJ54AHCT245J
Brand: TI
SKU: 290122335-0000-0000-0000

SNJ54AHCT245J - TI の商品詳細ページです。

２営業日以内に回答いたします

SNJ54AHCT245J の詳細情報

型番	SNJ54AHCT245J
メーカー	TI
Additional Feature	WITH DIRECTION CONTROL
Control Type	COMMON CONTROL
Count Direction	BIDIRECTIONAL
Family	AHCT/VHCT/VT
JESD-30 Code	R-GDIP-T20
JESD-609 Code	e0
Length	24.195 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS TRANSCEIVER
Max I(ol)	0.008 Amp
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Power Supply Current-Max (ICC)	0.04 mA
Prop. Delay@Nom-Sup	11 ns
Propagation Delay (tpd)	11 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Screening Level	MIL-PRF-38535
Seated Height-Max	5.08 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	MILITARY
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	N/A
Width	7.62 mm
