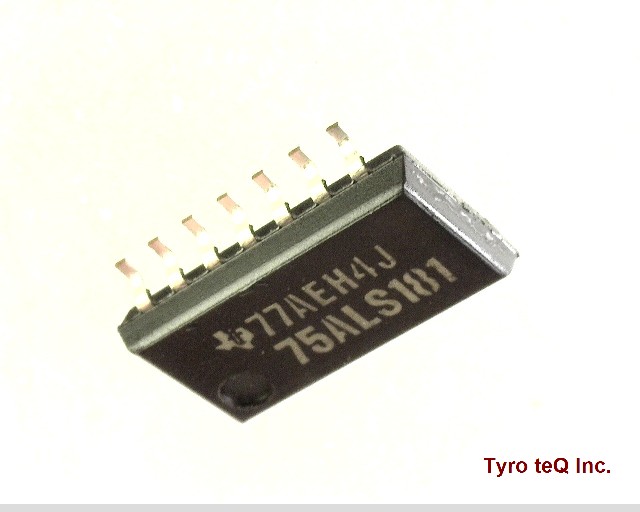

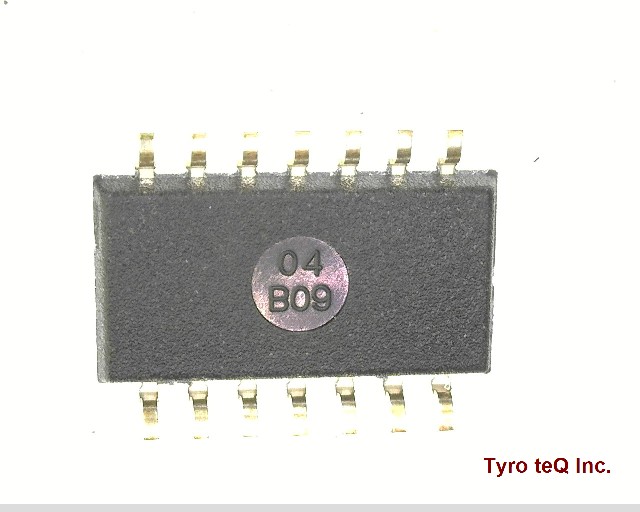

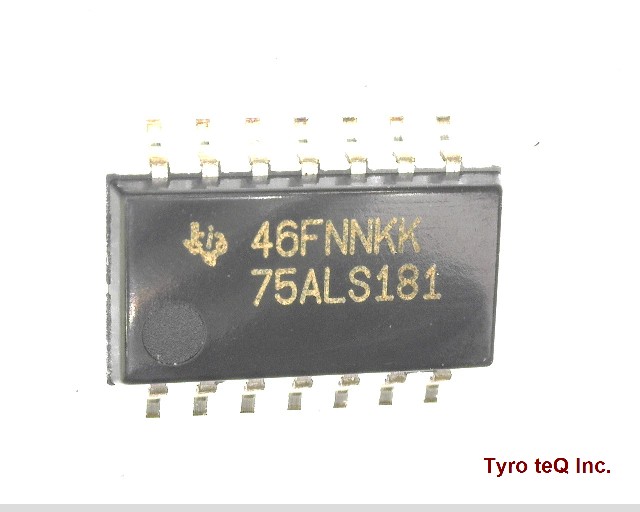

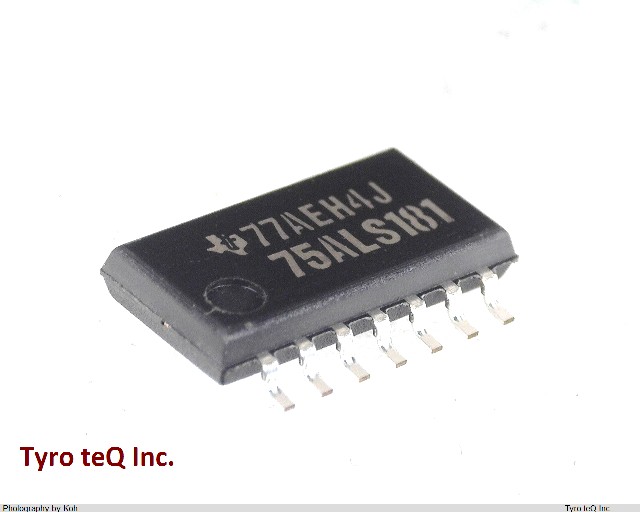

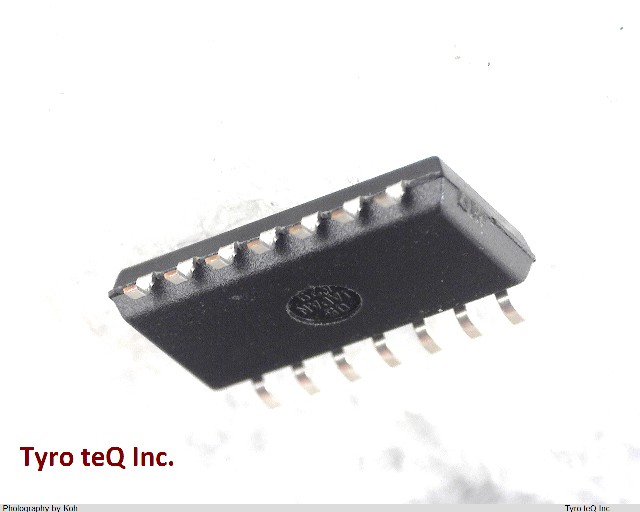

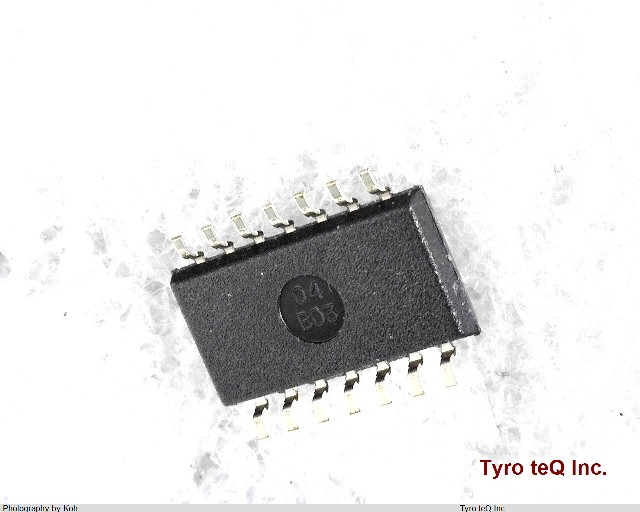

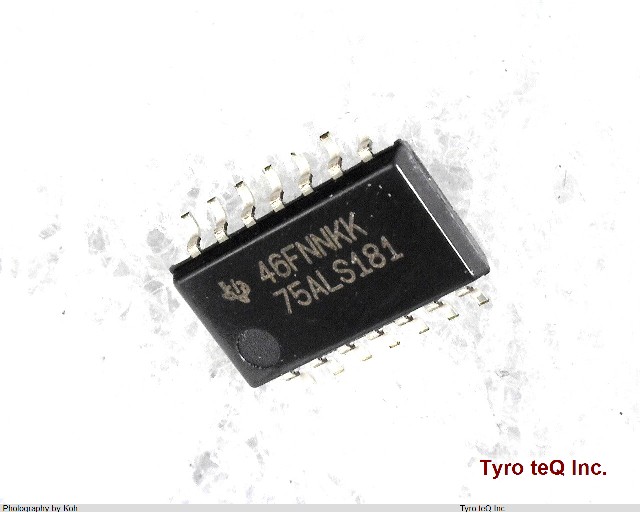

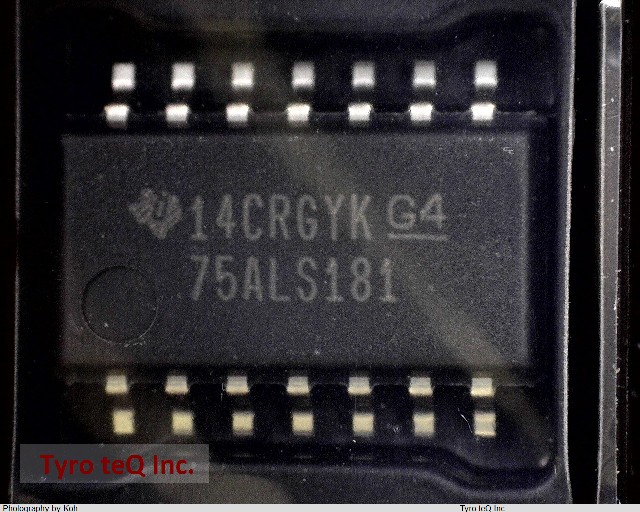

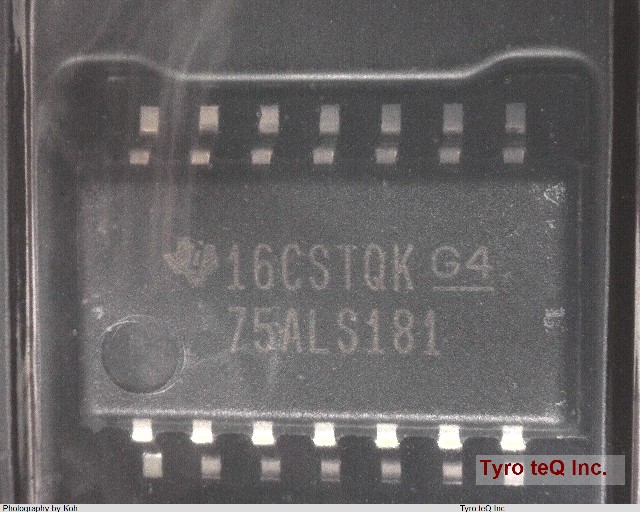

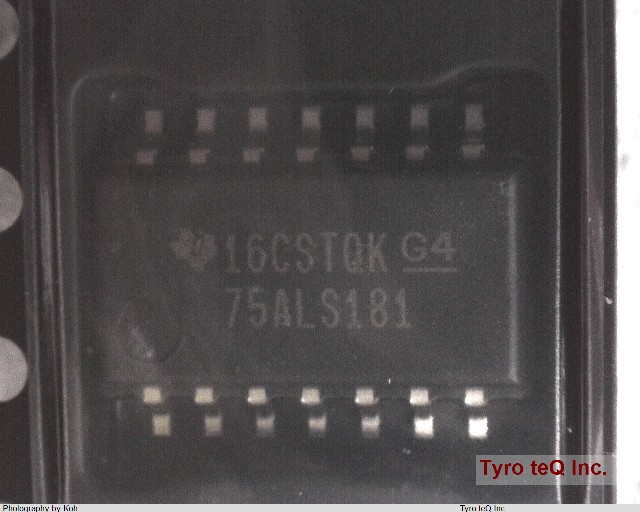

SN75ALS181NSR データシート

Name: SN75ALS181NSR
Brand: TI
SKU: 290038548-0000-0000-0000

SN75ALS181NSR - TI の商品詳細ページです。

２営業日以内に回答いたします

SN75ALS181NSR の詳細情報

型番	SN75ALS181NSR
メーカー	TI
データシート
Differential Output	YES
Driver Number of Bits	1
High Level Input Current-Max	2.0E-5 Amp
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-422-B; TIA-422-B; EIA-485-A; TIA-485-A; V.10; V.11; X.26; X.27
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e4
Length	10.2 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Out Swing-Min	1.5 V
Output Characteristics	3-STATE
Output Low Current-Max	2.0E-5 Amp
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	25 ns
Receiver Number of Bits	1
Seated Height-Max	2 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	30 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Supply Voltage1-Max	5.25 V
Supply Voltage1-Min	4.75 V
Supply Voltage1-Nom	5 V
Surface Mount	YES
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	20 ns
Width	5.3 mm
