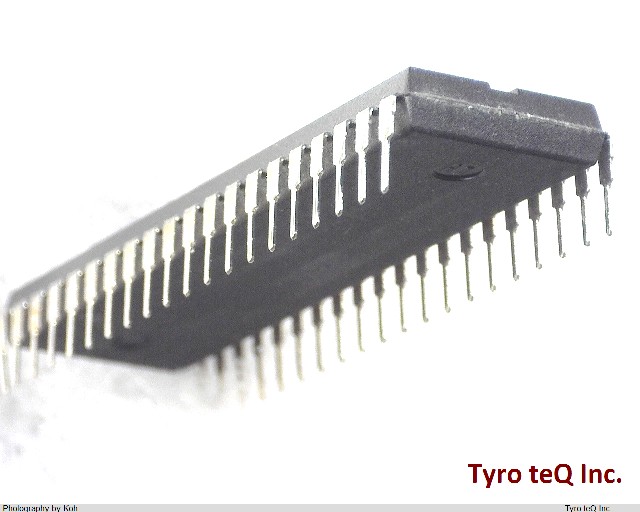

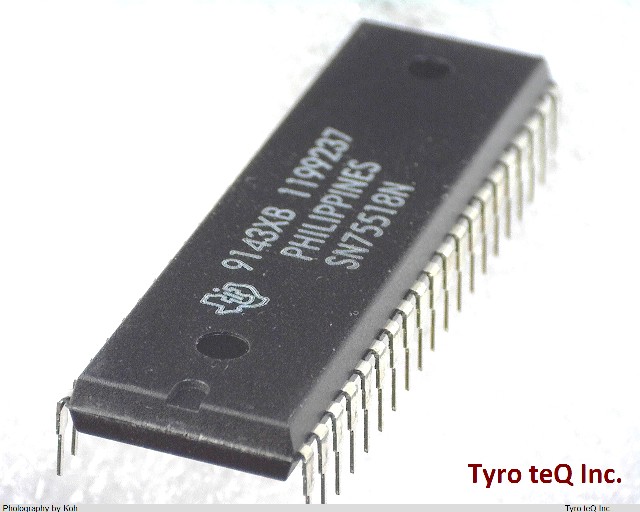

SN75518N データシート

Name: SN75518N
Brand: TI
SKU: 290038469-0000-0000-0000

SN75518N - TI の商品詳細ページです。

２営業日以内に回答いたします

SN75518N の詳細情報

型番	SN75518N
メーカー	TI
データシート
Data Input Mode	SERIAL
Display Mode	DOT MATRIX
Input Characteristics	STANDARD
Interface IC Type	VACUUM FLUORESCENT DISPLAY DRIVER
JESD-30 Code	R-PDIP-T40
Length	52.455 mm
Multiplexed Display Capability	NO
Number of Functions	1
Number of Segments	32
Number of Terminals	40
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Characteristics	TOTEM-POLE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5,60 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Display Drivers
Supply Current-Max	5 mA
Supply Voltage-Max	15 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	4.5 V
Supply Voltage1-Max	60 V
Supply Voltage1-Min	0 V
Supply Voltage1-Nom	30 V
Surface Mount	NO
Technology	BICMOS
Temperature Grade	COMMERCIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
fmax-Min	1 MHz
