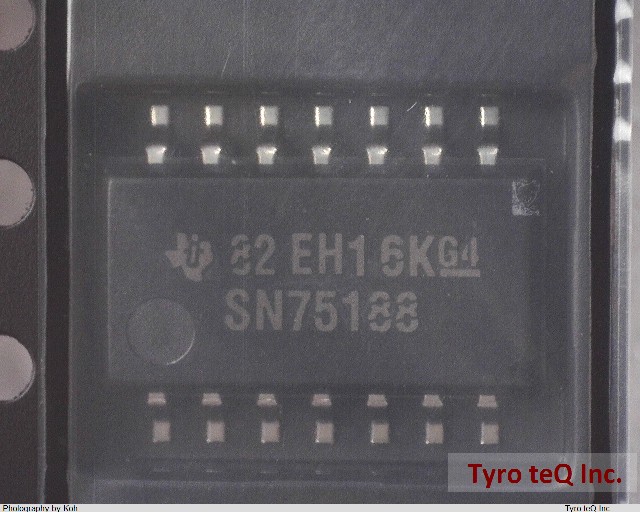

SN75188NSE4 データシート

Name: SN75188NSE4
Brand: TI
SKU: 290181604-0000-0000-0000

SN75188NSE4 - TI の商品詳細ページです。

２営業日以内に回答いたします

SN75188NSE4 の詳細情報

型番	SN75188NSE4
メーカー	TI
データシート
Differential Output	NO
Driver Number of Bits	1
Input Characteristics	GATED
Interface IC Type	LINE DRIVER
Interface Standard	V.28; EIA-232-E
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e4
Length	10.2 mm
Moisture Sensitivity Level	1
Negative Supply Voltage-Nom	-9 V
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Supply Voltage-Max	15 V
Supply Voltage-Min	7.5 V
Supply Voltage-Nom	9 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	MILITARY
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	175 ns
Width	5.3 mm
