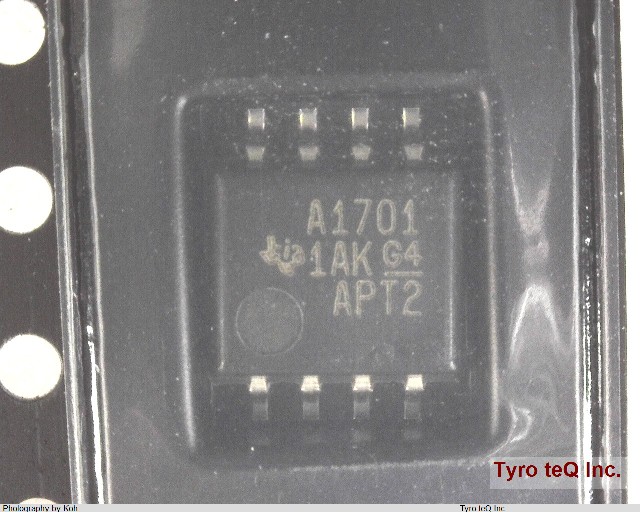

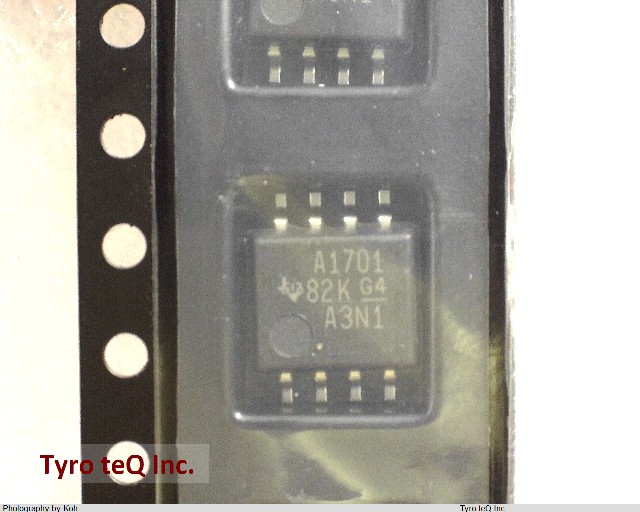

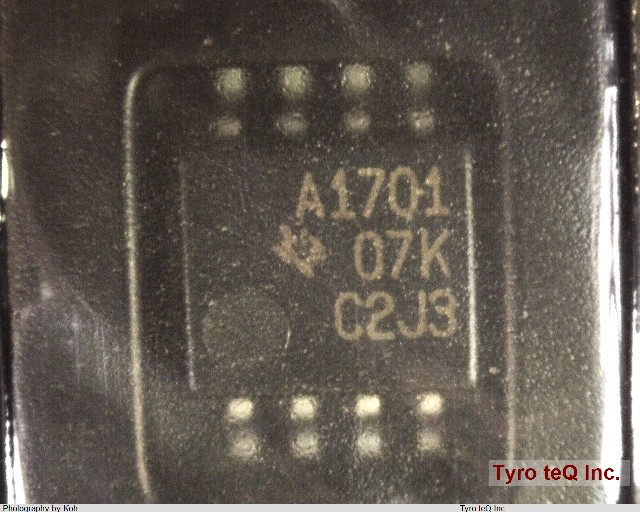

SN751701PSR データシート

Name: SN751701PSR
Brand: TI
SKU: 290038285-0000-0000-0000

SN751701PSR - TI の商品詳細ページです。

２営業日以内に回答いたします

SN751701PSR の詳細情報

型番	SN751701PSR
メーカー	TI
データシート
Differential Output	NO
Driver Number of Bits	1
High Level Input Current-Max	5.0E-6 Amp
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232-C; TIA-232-C
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	6.2 mm
Moisture Sensitivity Level	1
Negative Supply Voltage-Nom	-12 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
Out Swing-Min	6.4 V
Output Characteristics	TOTEM-POLE
Output Low Current-Max	0.024 Amp
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5/+-12 V
Qualification Status	Not Qualified
Receive Delay-Max	240 ns
Receiver Number of Bits	1
Seated Height-Max	2 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	14 mA
Supply Voltage-Max	15 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	12 V
Supply Voltage1-Max	15 V
Supply Voltage1-Min	4.5 V
Supply Voltage1-Nom	12 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	480 ns
Width	5.3 mm
