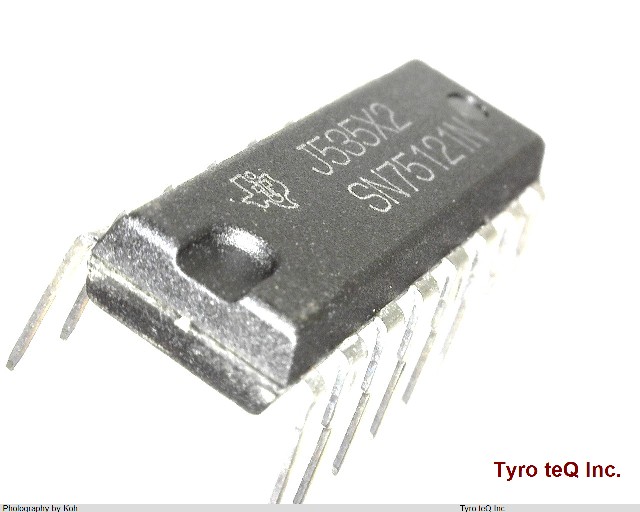

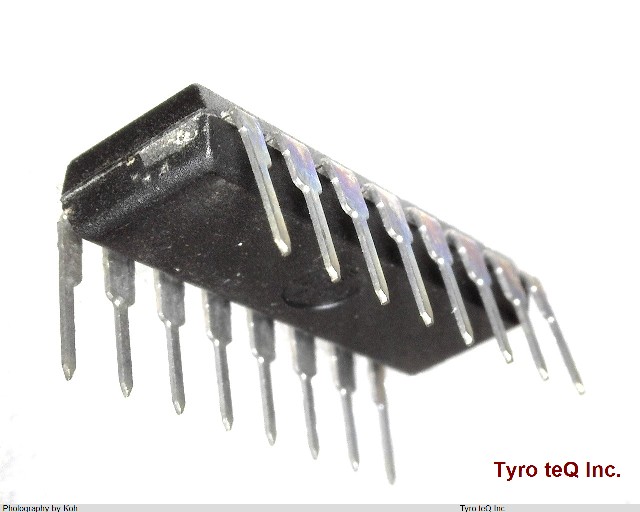

SN75121N データシート

Name: SN75121N
Brand: TI
SKU: 290002768-0000-0000-0000

SN75121N - TI の商品詳細ページです。

２営業日以内に回答いたします

SN75121N の詳細情報

型番	SN75121N
メーカー	TI
データシート
Differential Output	NO
Driver Number of Bits	1
High Level Input Current-Max	4.0E-5 Amp
Input Characteristics	GATED
Interface IC Type	LINE DRIVER
Interface Standard	GENERAL PURPOSE
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e4
Length	10.2 mm
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Out Swing-Min	2.4 V
Output Characteristics	OPEN-EMITTER
Output Low Current-Max	0.008 Amp
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	0 ns
Seated Height-Max	2 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	60 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Supply Voltage1-Max	5.25 V
Supply Voltage1-Min	4.75 V
Supply Voltage1-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	50 ns
Width	5.3 mm
