SN751177N データシート

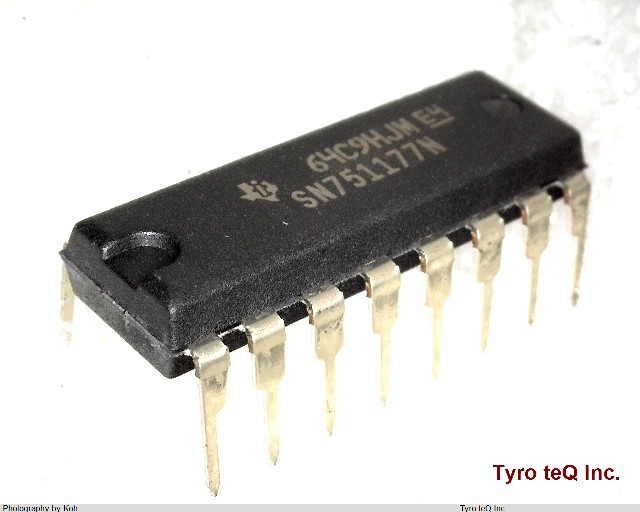

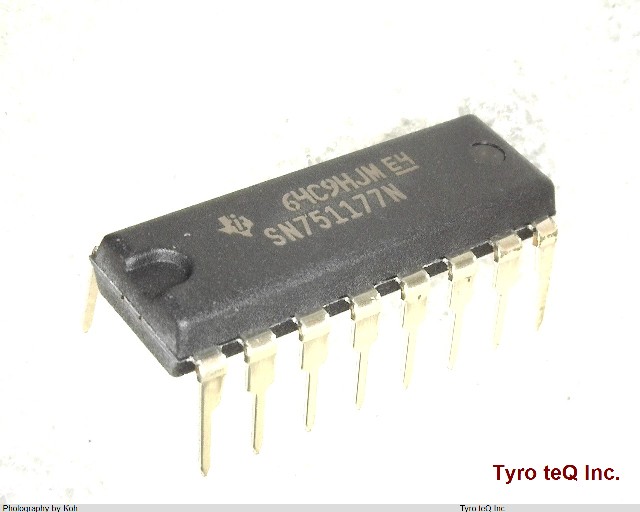

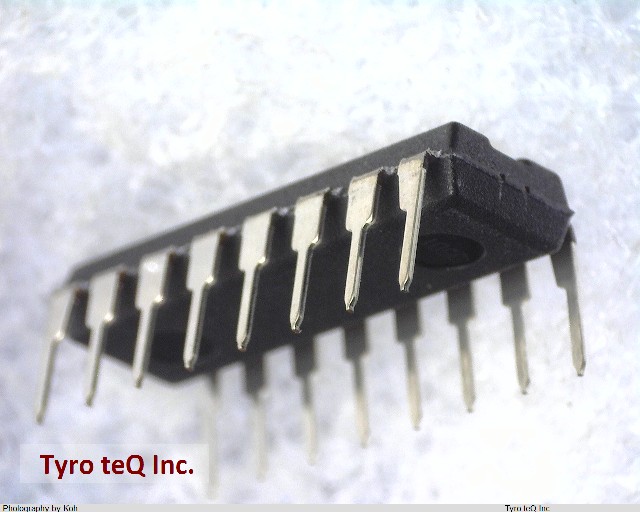

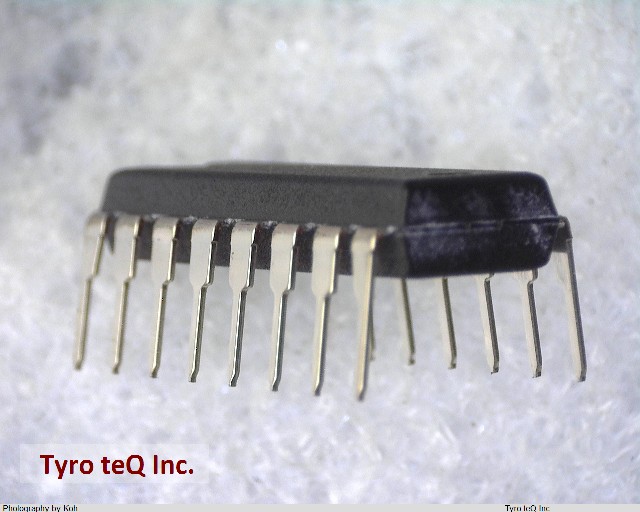

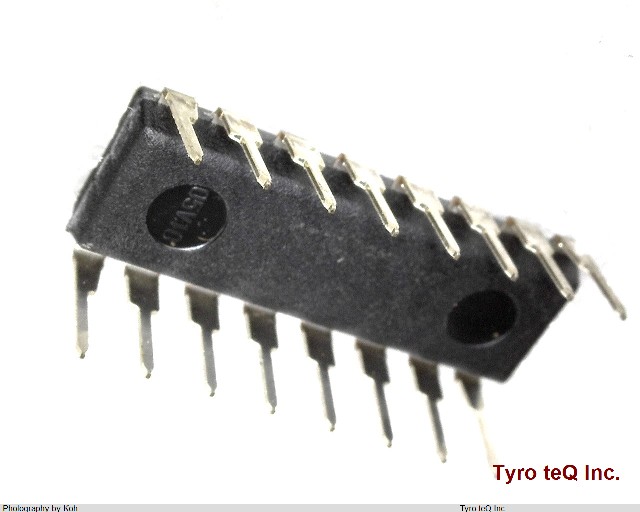

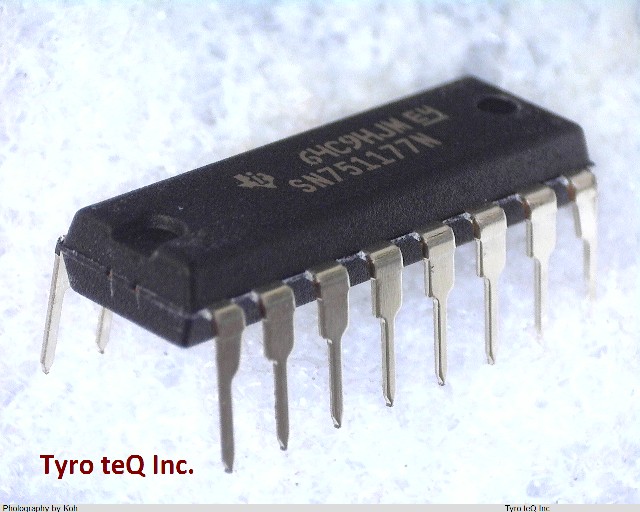

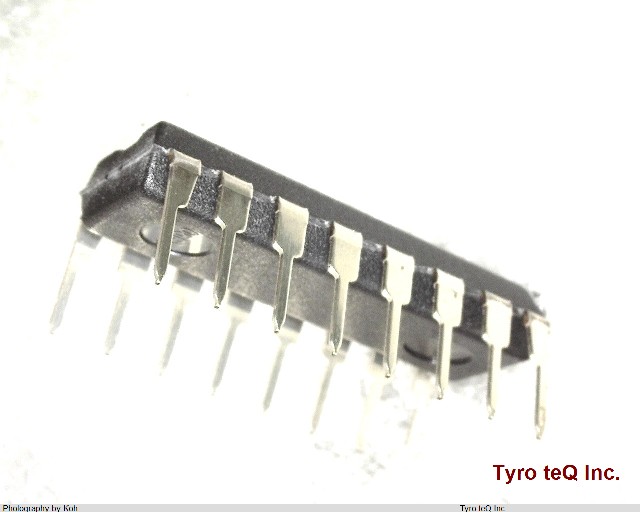

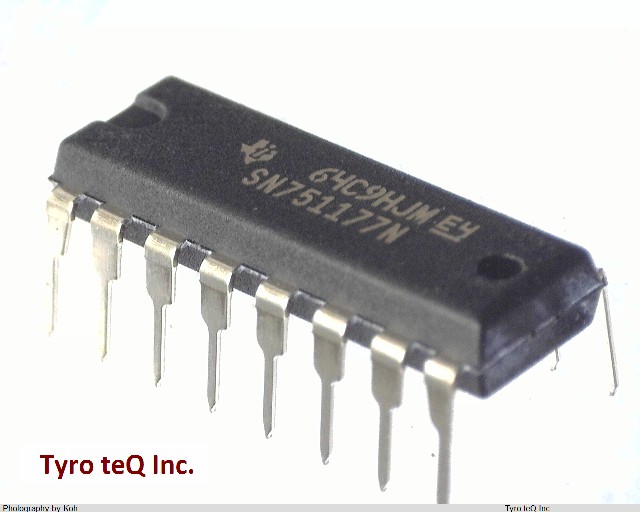

Name: SN751177N
Brand: TI
SKU: 290016615-0000-0000-0000

SN751177N - TI の商品詳細ページです。

２営業日以内に回答いたします

SN751177N の詳細情報

型番	SN751177N
メーカー	TI
データシート
Additional Feature	RECEIVER 3-STATE OUTPUTS
Differential Output	YES
Driver Number of Bits	2
High Level Input Current-Max	2.0E-5 Amp
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-422-B; TIA-422-B; EIA-485-A; TIA-485-A; V.10; V.11
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e4
Length	10.2 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Out Swing-Min	1.5 V
Output Characteristics	3-STATE
Output Low Current-Max	2.0E-5 Amp
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	35 ns
Receiver Number of Bits	2
Seated Height-Max	2 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	110 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Supply Voltage1-Max	5.25 V
Supply Voltage1-Min	4.75 V
Supply Voltage1-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	25 ns
Width	5.3 mm
