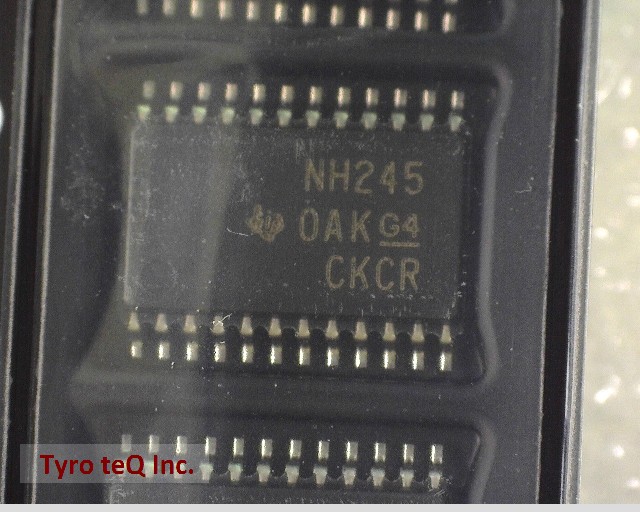

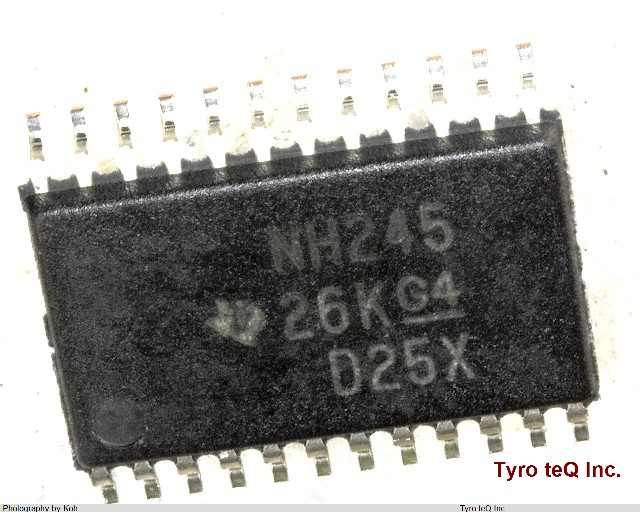

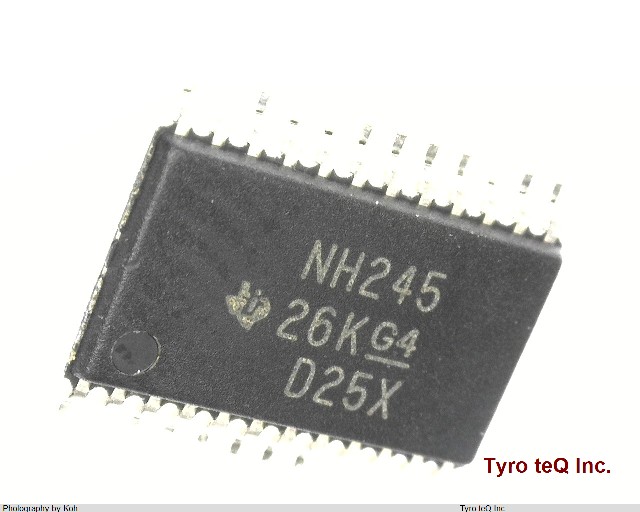

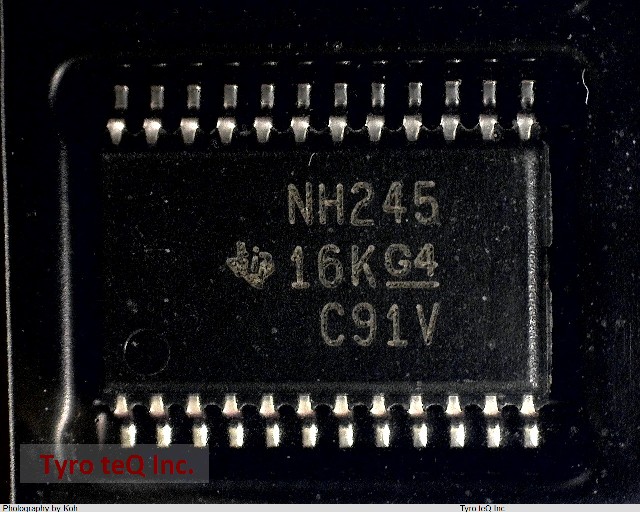

SN74LVC8T245PW データシート

Name: SN74LVC8T245PW
Brand: TI
SKU: 290016573-0000-0000-0000

SN74LVC8T245PW - TI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|パッケージ： TSSOP | 梱包：Tube

SN74LVC8T245PW の詳細情報

型番	SN74LVC8T245PW
メーカー	TI
種別	CMOS標準ロジックIC
データシート
Additional Feature	TWO SEPEARATE CONFIGURABLE POWER-SUPPLY RAILS FOR PORT A AND B
Control Type	COMMON CONTROL
Count Direction	BIDIRECTIONAL
Family	LVC/LCX/Z
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e4
Length	7.8 mm
Load Capacitance (CL)	15 pF
Logic IC Type	BUS TRANSCEIVER
Max I(ol)	0.024 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP24,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Power Supply Current-Max (ICC)	0.025 mA
Prop. Delay@Nom-Sup	6.3 ns
Propagation Delay (tpd)	23.8 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Bus Driver/Transceiver
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	1.8/5.5V&1.8/5.5V
Width	4.4 mm
