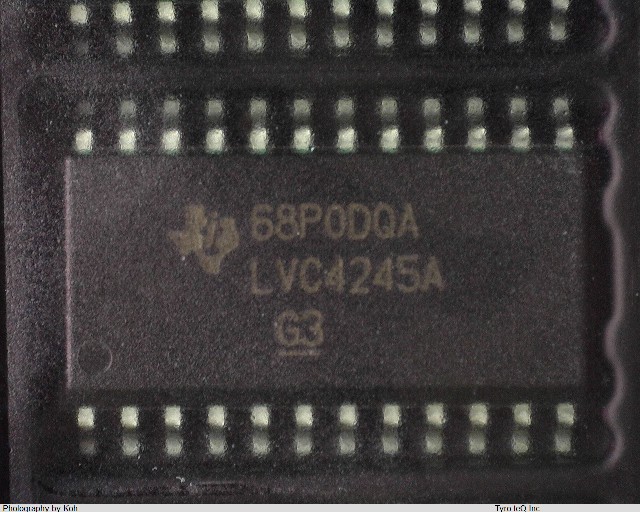

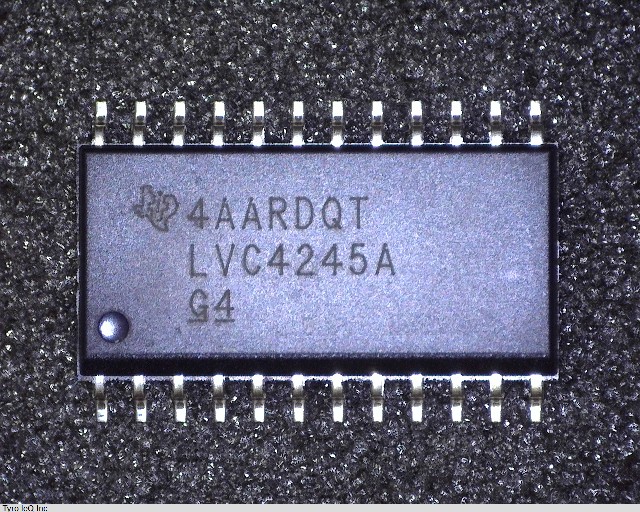

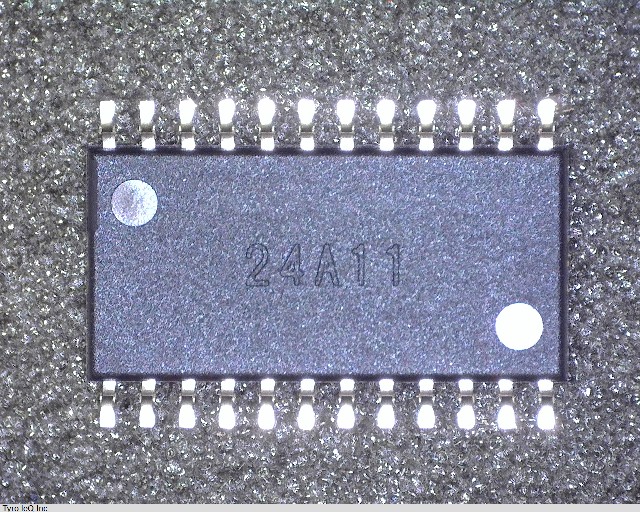

SN74LVC4245ADW データシート

Name: SN74LVC4245ADW
Brand: TI
SKU: 290012754-0000-0000-0000

SN74LVC4245ADW - TI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|パッケージ： SOIC

SN74LVC4245ADW の詳細情報

型番	SN74LVC4245ADW
メーカー	TI
種別	CMOS標準ロジックIC
データシート
Additional Feature	5V SUPPLY FOR PORT A; 3.3V SUPPLY FOR PORT B
Control Type	COMMON CONTROL
Count Direction	BIDIRECTIONAL
Family	LVC/LCX/Z
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e3
Length	15.4 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS TRANSCEIVER
Max I(ol)	0.024 Amp
Moisture Sensitivity Level	1
Number of Bits	8
Number of Functions	1
Number of Ports	2
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP24,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Power Supply Current-Max (ICC)	0.13 mA
Prop. Delay@Nom-Sup	6.7 ns
Propagation Delay (tpd)	6.7 ns
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Sub Category	Bus Driver/Transceiver
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	3V & 5V
Width	7.5 mm
