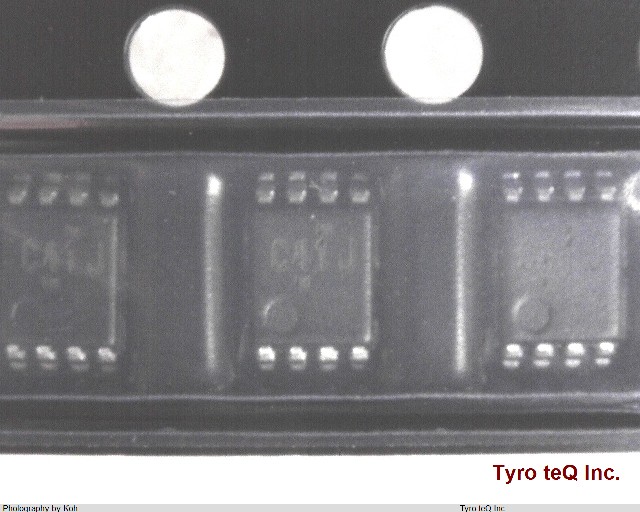

SN74LVC2G241DCUR

Name: SN74LVC2G241DCUR
Brand: TI
SKU: 290037701-0000-0000-0000

SN74LVC2G241DCUR - TI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC

SN74LVC2G241DCUR の詳細情報

型番	SN74LVC2G241DCUR
メーカー	TI
種別	CMOS標準ロジックIC
Control Type	ENABLE LOW/HIGH
Count Direction	UNIDIRECTIONAL
Family	LVC/LCX/Z
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	2.3 mm
Logic IC Type	BUS DRIVER
Max I(ol)	0.032 Amp
Moisture Sensitivity Level	1
Number of Bits	1
Number of Functions	2
Number of Ports	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Equivalence Code	TSSOP8,.12,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Power Supply Current-Max (ICC)	0.01 mA
Prop. Delay@Nom-Sup	4.3 ns
Propagation Delay (tpd)	8.8 ns
Qualification Status	Not Qualified
Seated Height-Max	0.9 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Translation	N/A
Width	2 mm
