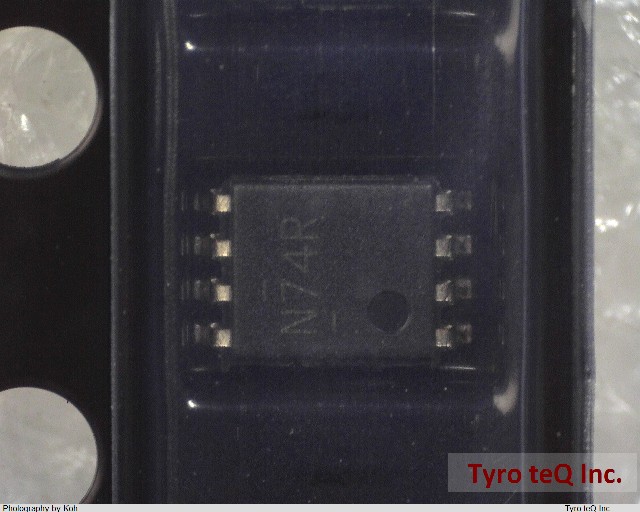

SN74LVC1G74DCUT データシート

Name: SN74LVC1G74DCUT
Brand: TI
SKU: 290310533-0000-0000-0000

SN74LVC1G74DCUT - TI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC

SN74LVC1G74DCUT の詳細情報

型番	SN74LVC1G74DCUT
メーカー	TI
種別	CMOS標準ロジックIC
データシート
Family	LVC/LCX/Z
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	2.3 mm
Logic IC Type	D FLIP-FLOP
Max Frequency@Nom-Sup	175000000 Hz
Max I(ol)	0.032 Amp
Moisture Sensitivity Level	1
Number of Bits	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	VSSOP
Package Equivalence Code	TSSOP8,.12,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Power Supply Current-Max (ICC)	0.01 mA
Prop. Delay@Nom-Sup	7.9 ns
Propagation Delay (tpd)	8.2 ns
Qualification Status	Not Qualified
Seated Height-Max	0.9 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	2 mm
fmax-Min	200 MHz
