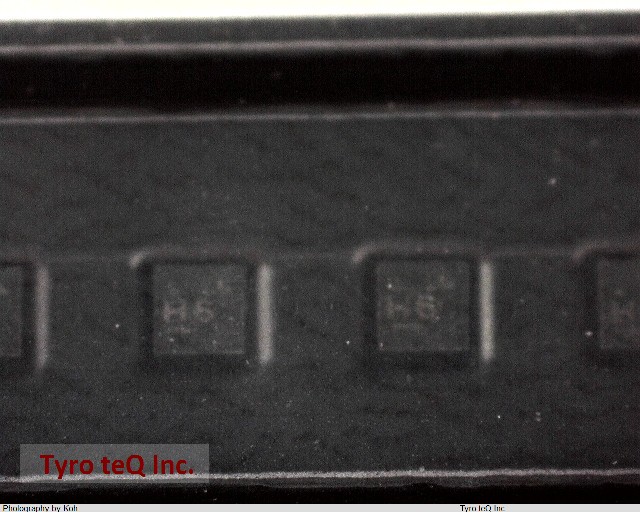

SN74LVC1G14DPWR

Name: SN74LVC1G14DPWR
Brand: TI
SKU: 400024830-0000-0000-0000

SN74LVC1G14DPWR - TI の商品詳細ページです。

２営業日以内に回答いたします

SN74LVC1G14DPWR の詳細情報

型番	SN74LVC1G14DPWR
メーカー	TI
種別	CMOS標準ロジックIC
Family	LVC/LCX/Z
JESD-30 Code	S-PBCC-B5
JESD-609 Code	e4
Length	0.8 mm
Logic IC Type	INVERTER
Max I(ol)	0.032 Amp
Moisture Sensitivity Level	1
Number of Functions	1
Number of Inputs	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	HVBCC
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supply Current-Max (ICC)	0.01 mA
Propagation Delay (tpd)	11 ns
Schmitt Trigger	YES
Seated Height-Max	0.4 mm
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	BUTT
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	0.8 mm
