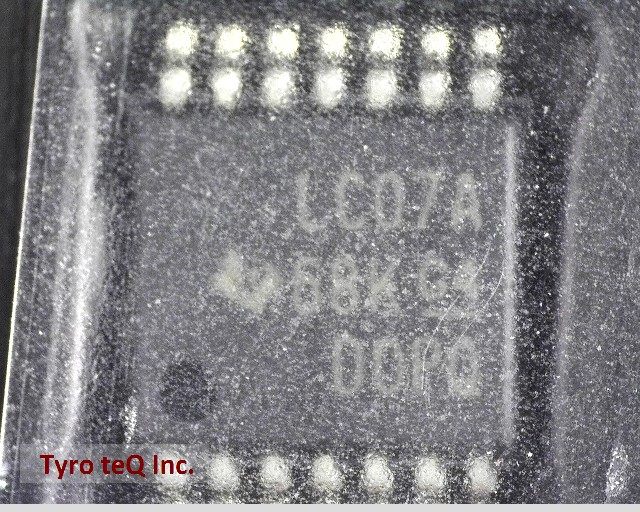

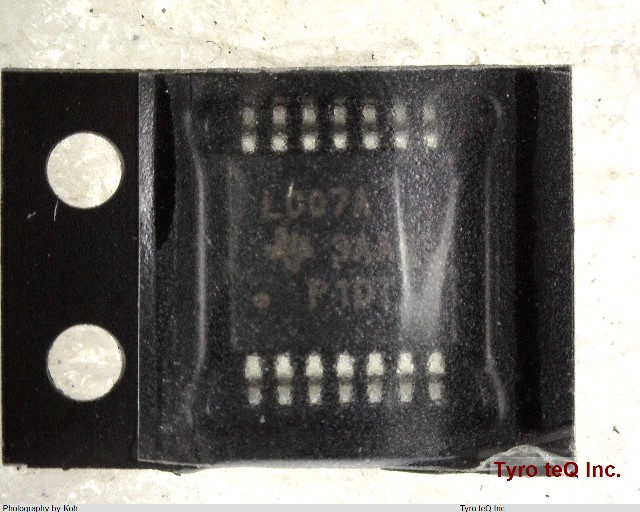

SN74LVC07APWR データシート

Name: SN74LVC07APWR
Brand: TI
SKU: 290012592-0000-0000-0000

SN74LVC07APWR - TI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|パッケージ： TSSOP | 梱包：Tape and reel

SN74LVC07APWR の詳細情報

型番	SN74LVC07APWR
メーカー	TI
種別	CMOS標準ロジックIC
データシート
Family	LVC/LCX/Z
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e3
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUFFER
Max I(ol)	0.024 Amp
Moisture Sensitivity Level	1
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	OPEN-DRAIN
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Power Supply Current-Max (ICC)	0.04 mA
Prop. Delay@Nom-Sup	3.6 ns
Propagation Delay (tpd)	5.6 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.2 mm
Sub Category	Gate
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
