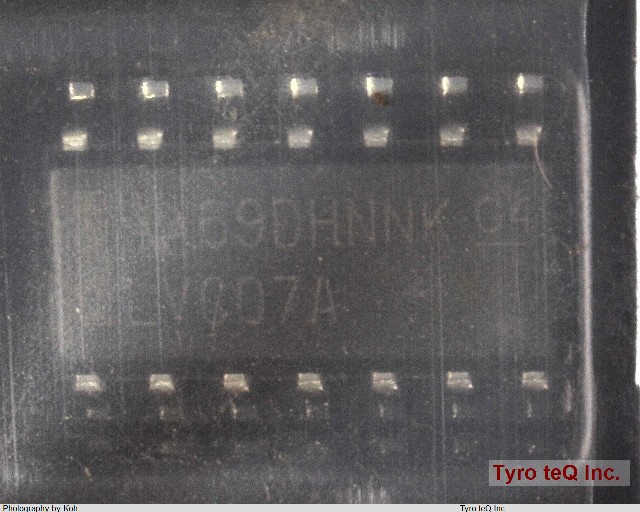

SN74LVC07AD データシート

Name: SN74LVC07AD
Brand: TI
SKU: 290118975-0000-0000-0000

SN74LVC07AD - TI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|パッケージ：SOIC | 梱包：Tube

SN74LVC07AD の詳細情報

型番	SN74LVC07AD
メーカー	TI
種別	CMOS標準ロジックIC
データシート
Family	LVC/LCX/Z
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e3
Length	4.4 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUFFER
Max I(ol)	0.024 Amp
Moisture Sensitivity Level	1
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	OPEN-DRAIN
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Power Supply Current-Max (ICC)	0.04 mA
Prop. Delay@Nom-Sup	3.6 ns
Propagation Delay (tpd)	3.5 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.2 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1.65 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.4 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3.6 mm
