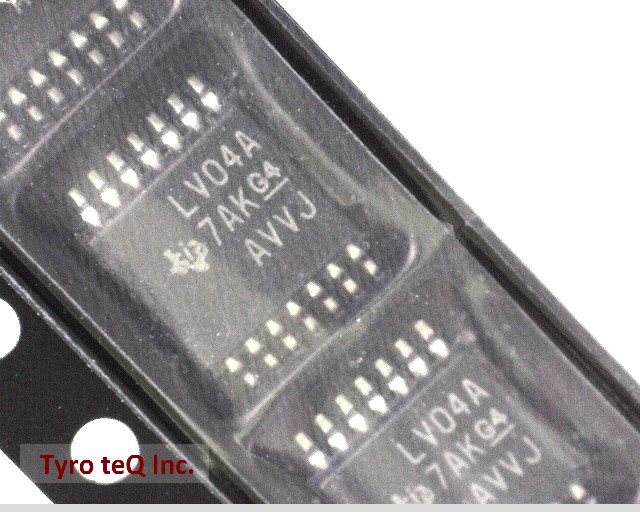

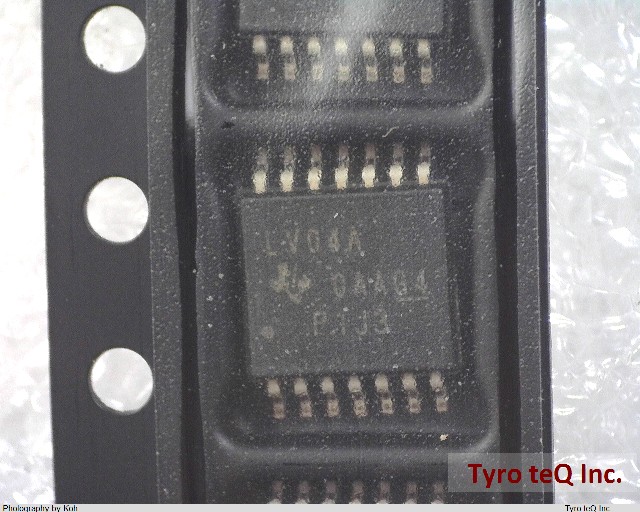

SN74LV04APWR データシート

Name: SN74LV04APWR
Brand: TI
SKU: 290001017-0000-0000-0000

SN74LV04APWR - TI の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC|パッケージ： TSSOP | 梱包：Tape and reel

SN74LV04APWR の詳細情報

型番	SN74LV04APWR
メーカー	TI
種別	CMOS標準ロジックIC
データシート
Family	LV/LV-A/LVX/H
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e3
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.006 Amp
Moisture Sensitivity Level	1
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter

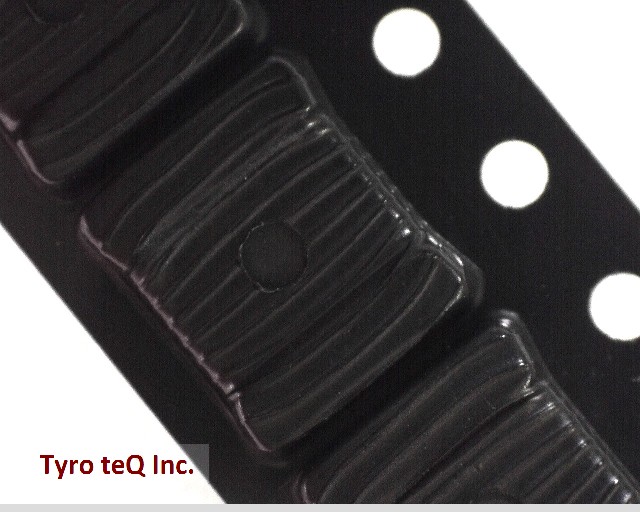

Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Power Supply Current-Max (ICC)	0.02 mA
Prop. Delay@Nom-Sup	12 ns
Propagation Delay (tpd)	18 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	1.2 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	2.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
