SN74LS90N データシート

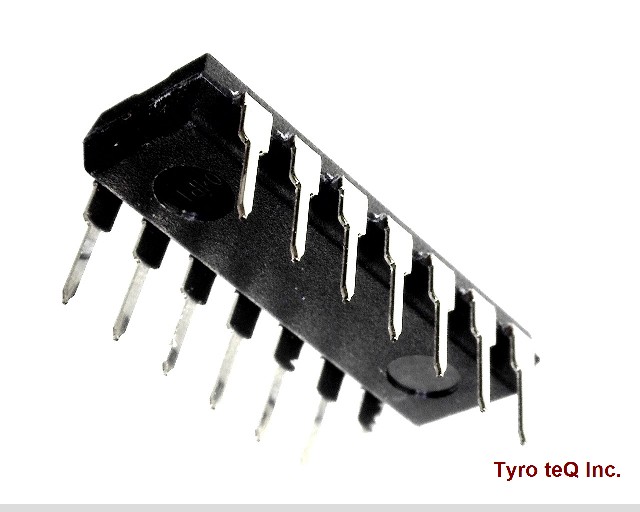

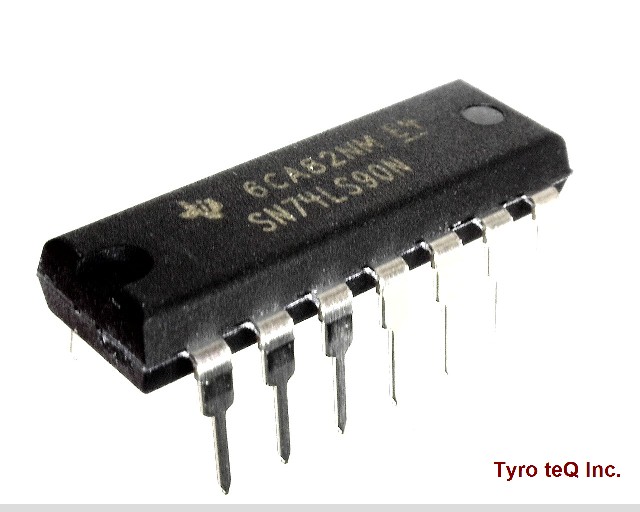

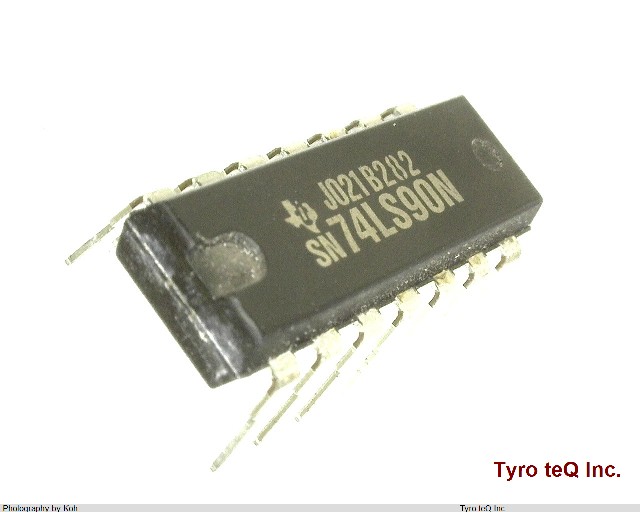

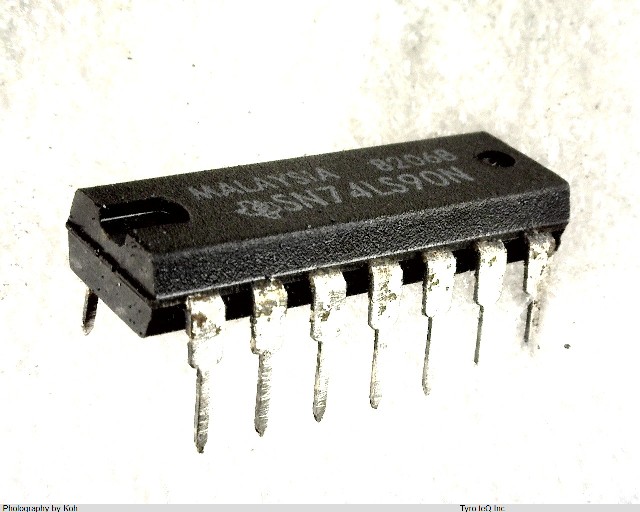

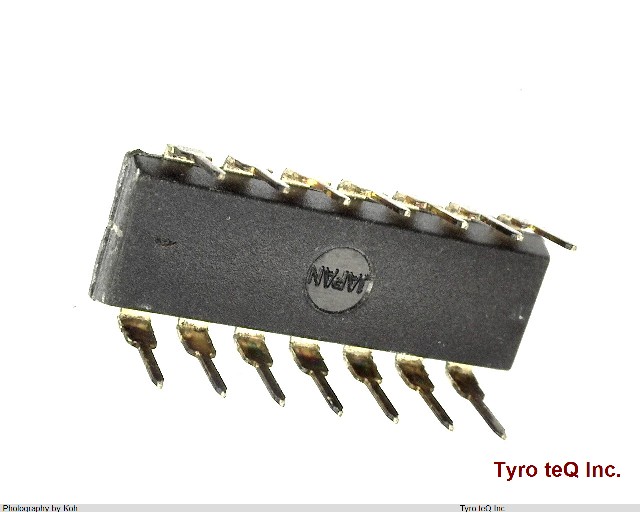

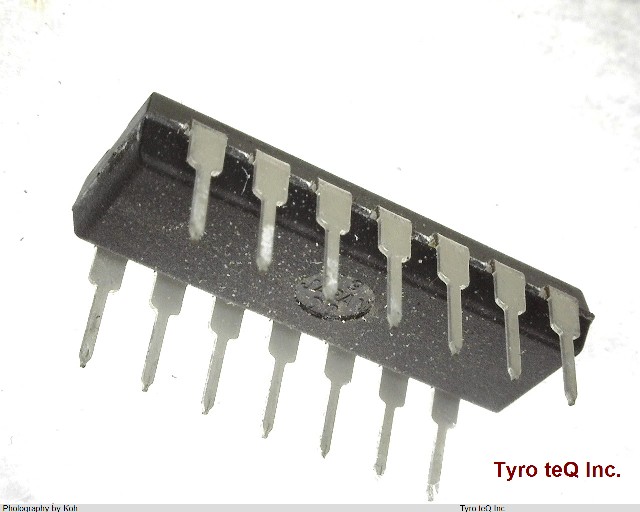

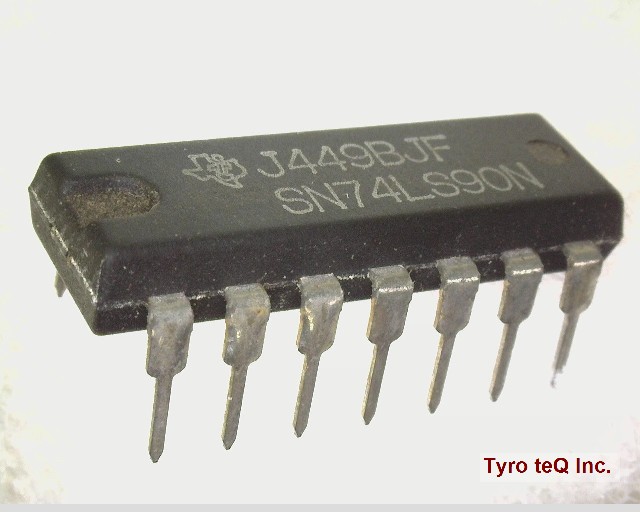

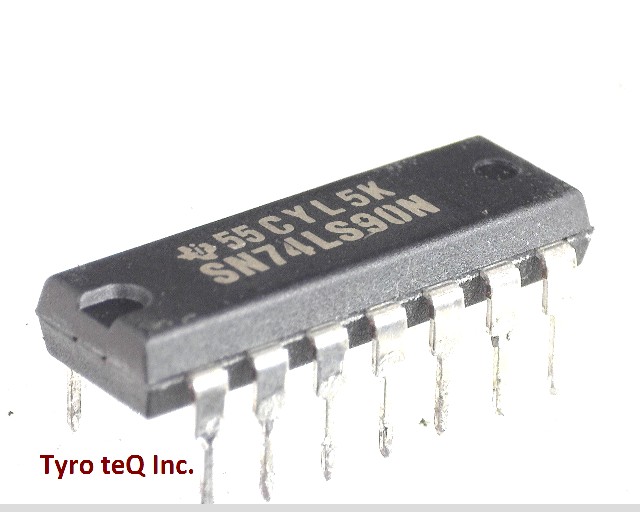

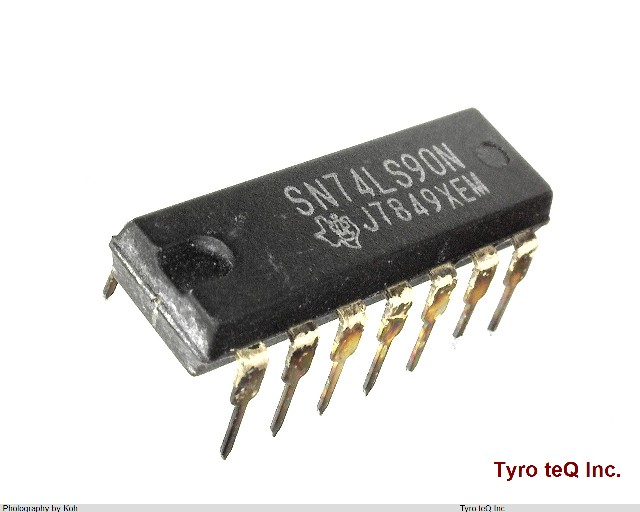

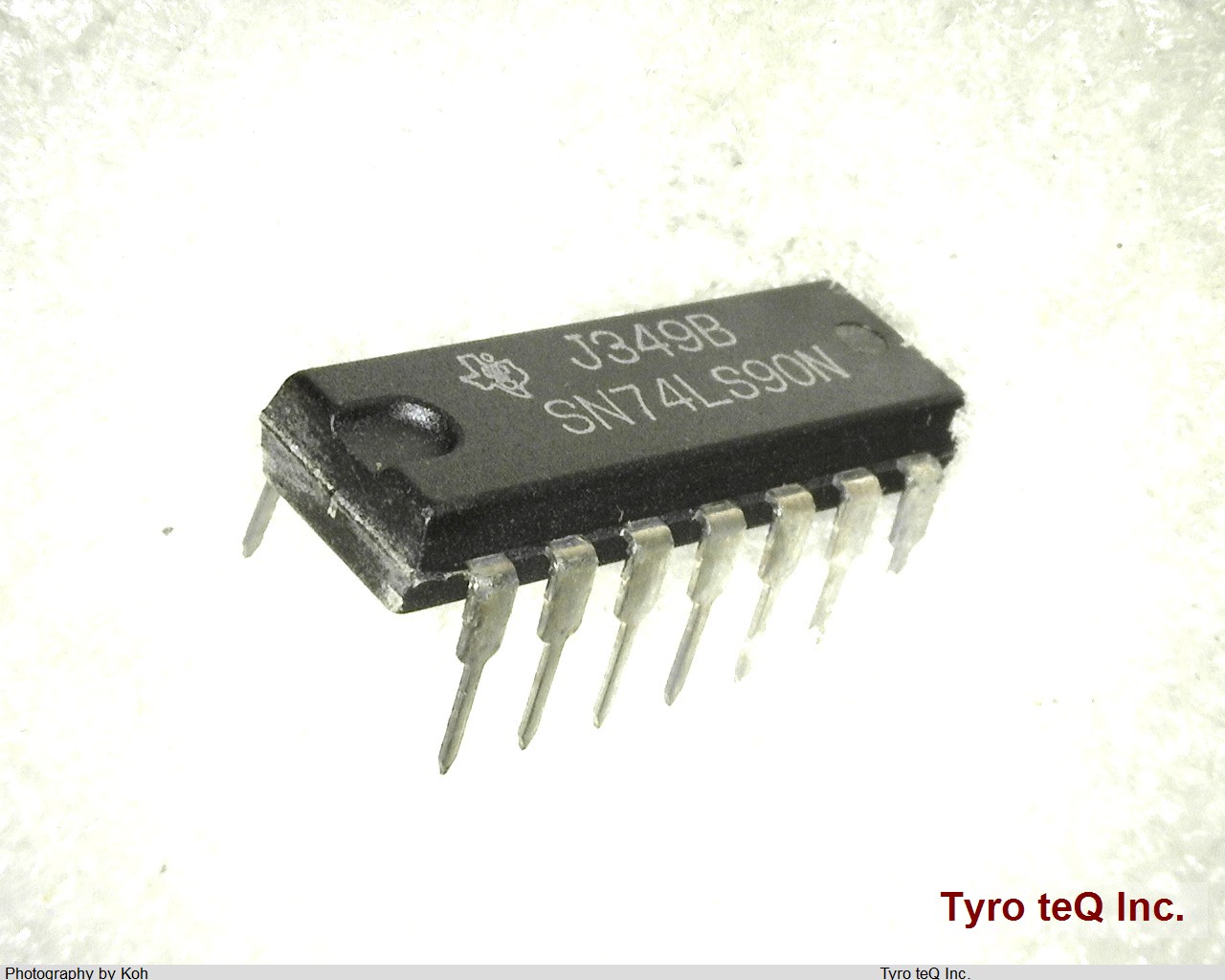

Name: SN74LS90N
Brand: TI
SKU: 290000412-0000-0000-0000

SN74LS90N - TI の商品詳細ページです。

２営業日以内に回答いたします

アドバンストLS-TTL　トランジスタ・トランジスタ・ロジック|パッケージ：PDIP | 梱包：Tube|動作温度 0℃ to 70℃

SN74LS90N の詳細情報

型番	SN74LS90N
メーカー	TI
種別	アドバンストLS-TTL
データシート
Additional Feature	DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS
Count Direction	UP
Family	LS
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	10.2 mm
Load Capacitance (CL)	15 pF
Load/Preset Input	NO
Logic IC Type	DECADE COUNTER
Max Frequency@Nom-Sup	16000000 Hz
Max I(ol)	0.008 Amp
Mode of Operation	ASYNCHRONOUS
Moisture Sensitivity Level	1
Number of Bits	3
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Power Supply Current-Max (ICC)	15 mA
Prop. Delay@Nom-Sup	50 ns
Propagation Delay (tpd)	35 ns
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Sub Category	Counters
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Trigger Type	NEGATIVE EDGE
Width	5.3 mm
fmax-Min	16 MHz
