SN74LS86N データシート

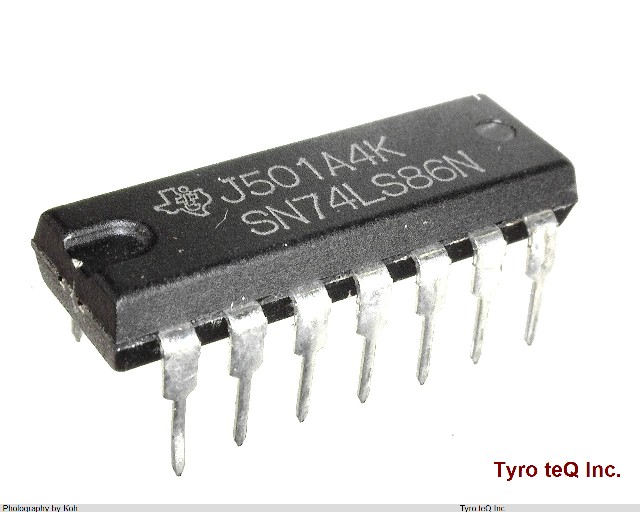

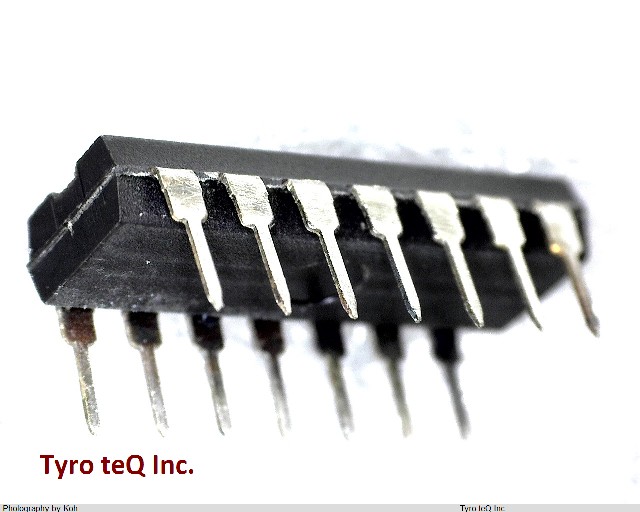

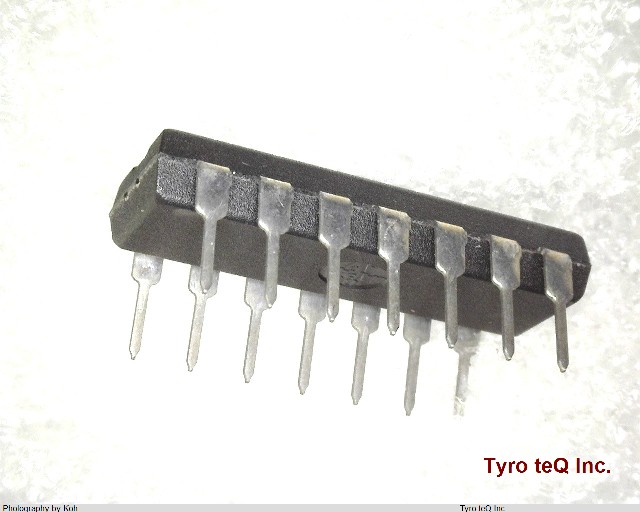

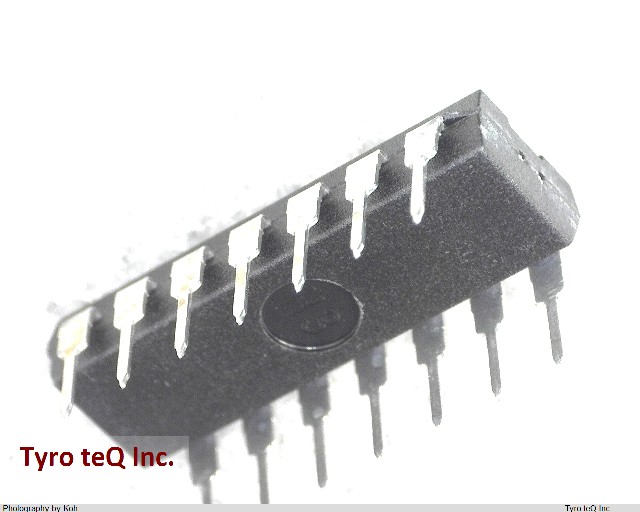

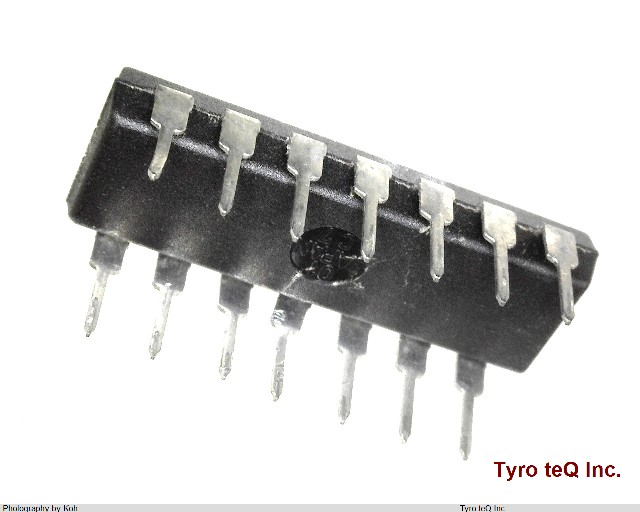

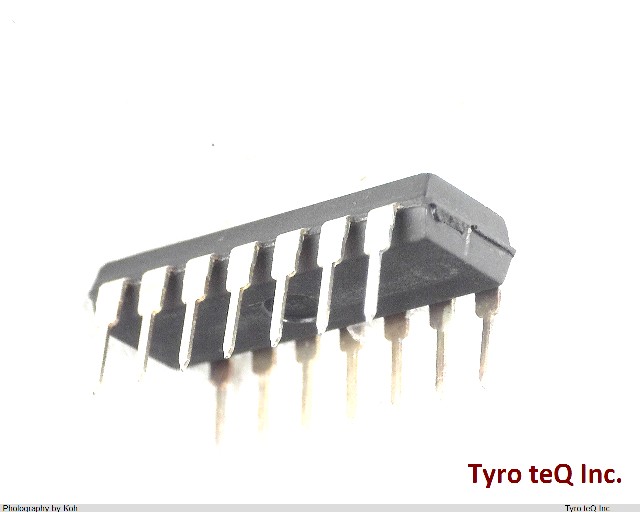

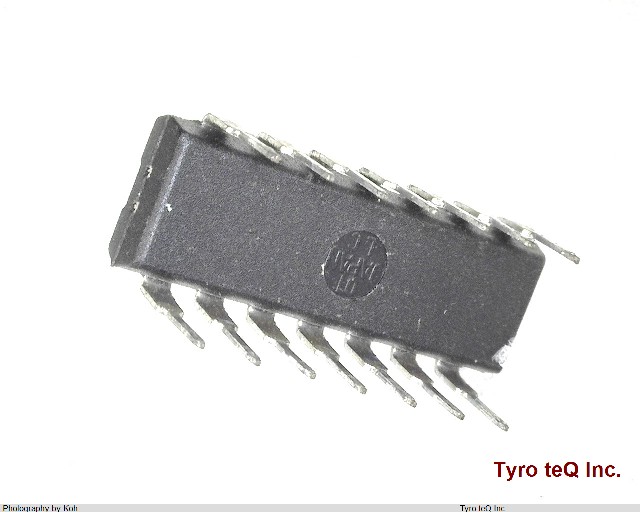

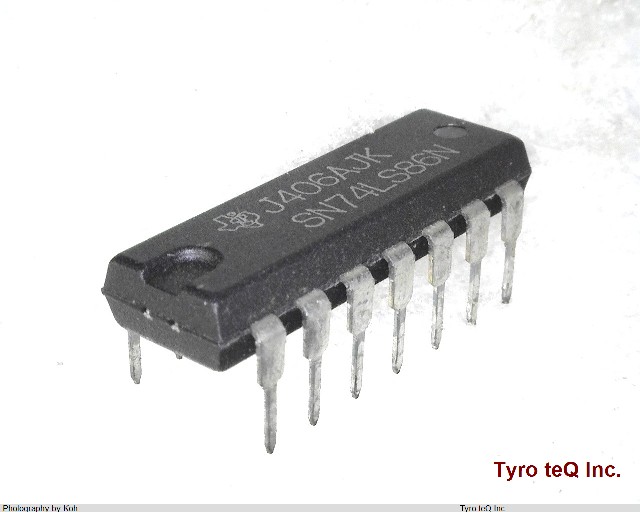

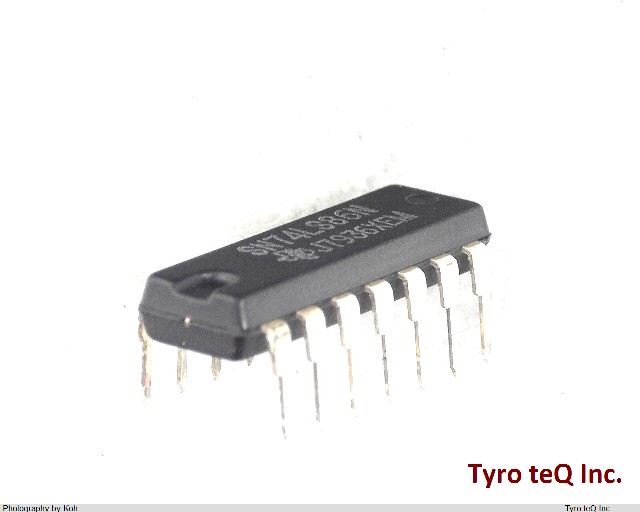

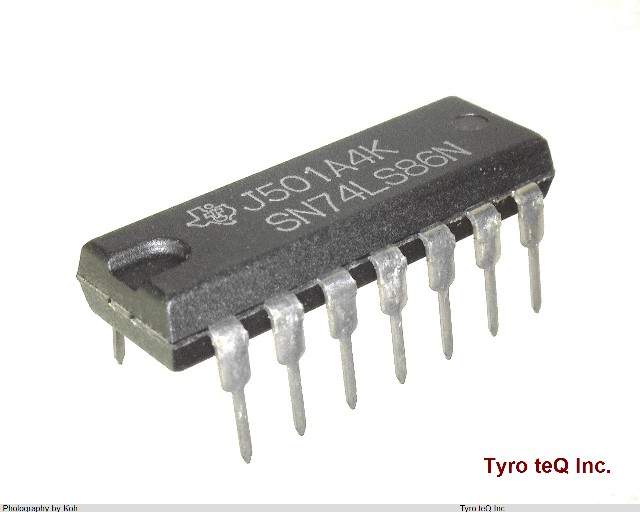

Name: SN74LS86N
Brand: TI
SKU: 290448442-0000-0000-0000

SN74LS86N - TI の商品詳細ページです。

２営業日以内に回答いたします

アドバンストLS-TTL　トランジスタ・トランジスタ・ロジック|パッケージ：PDIP | 梱包：Tube|動作温度 0℃ to 70℃

SN74LS86N の詳細情報

型番	SN74LS86N
メーカー	TI
種別	アドバンストLS-TTL
データシート
Family	LS
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	18.48 mm
Load Capacitance (CL)	15 pF
Logic IC Type	XOR GATE
Max I(ol)	0.008 Amp
Number of Functions	4
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Power Supply Current-Max (ICC)	10 mA
Prop. Delay@Nom-Sup	30 ns
Propagation Delay (tpd)	22 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	4.69 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
