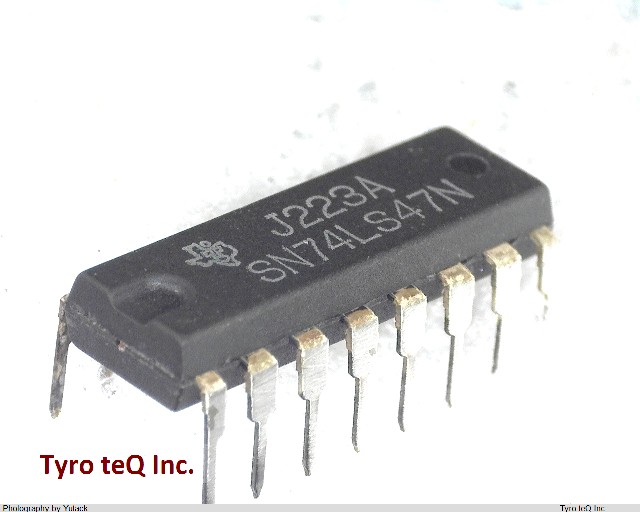

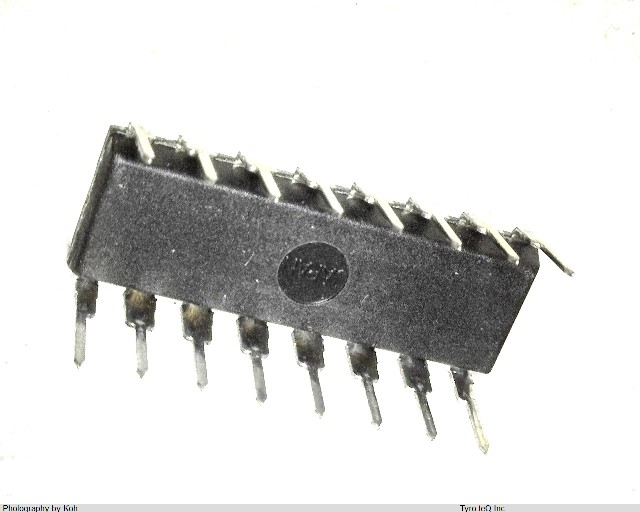

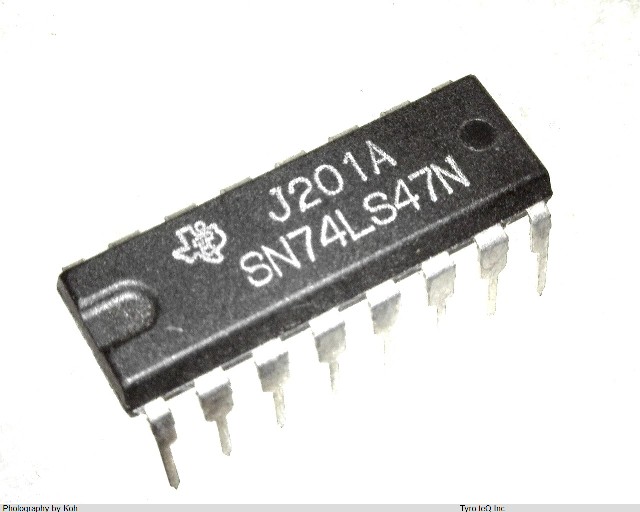

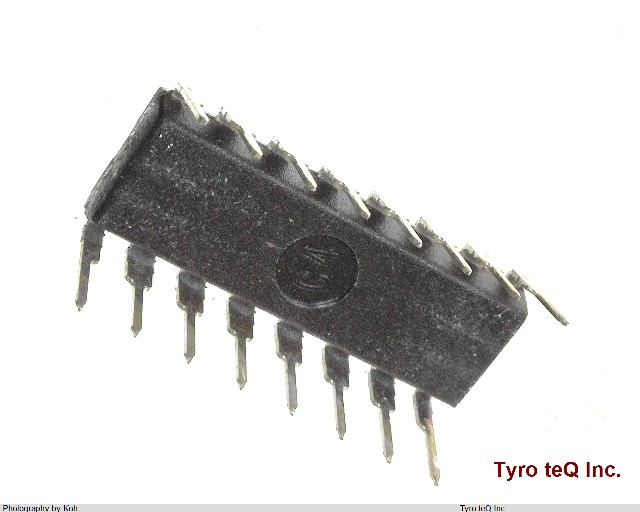

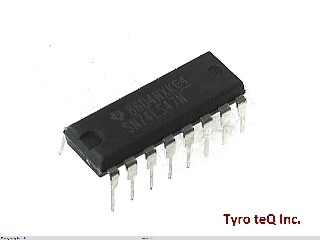

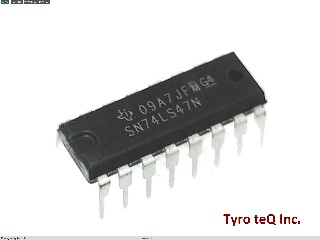

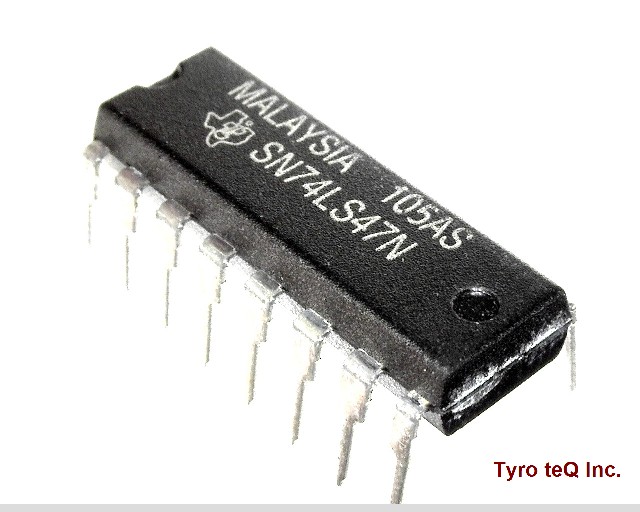

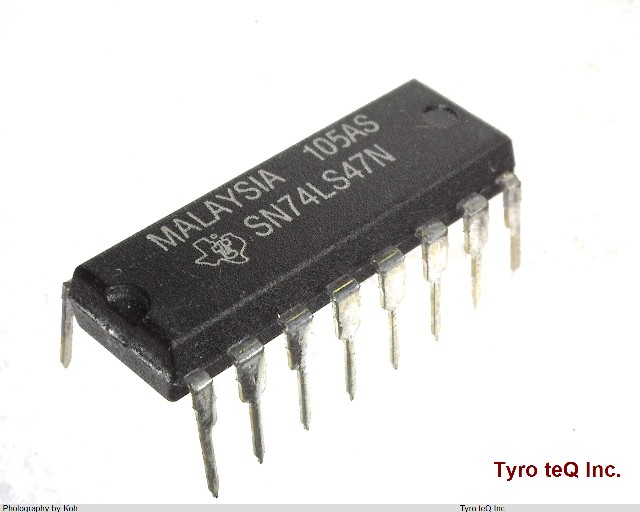

SN74LS47N データシート

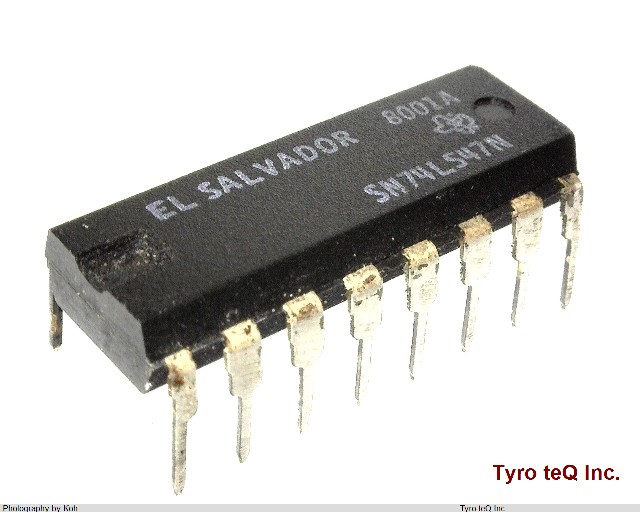

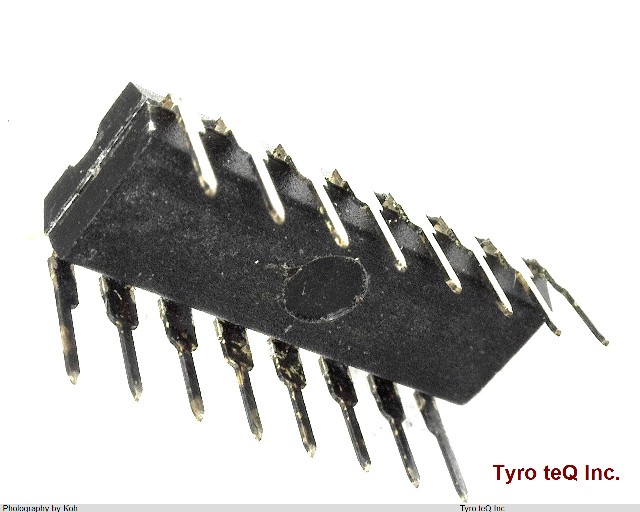

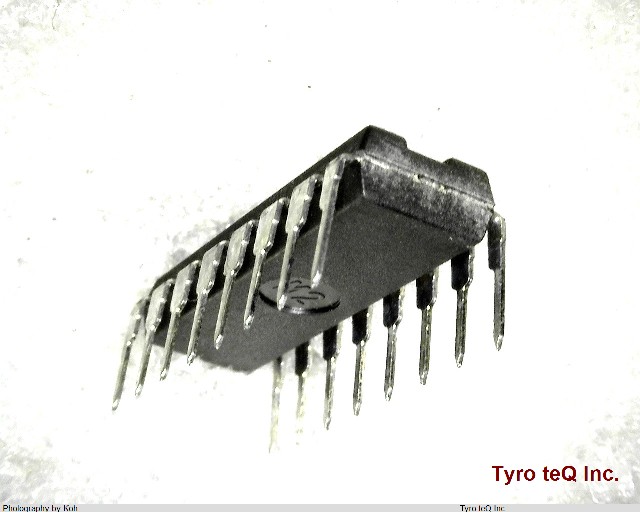

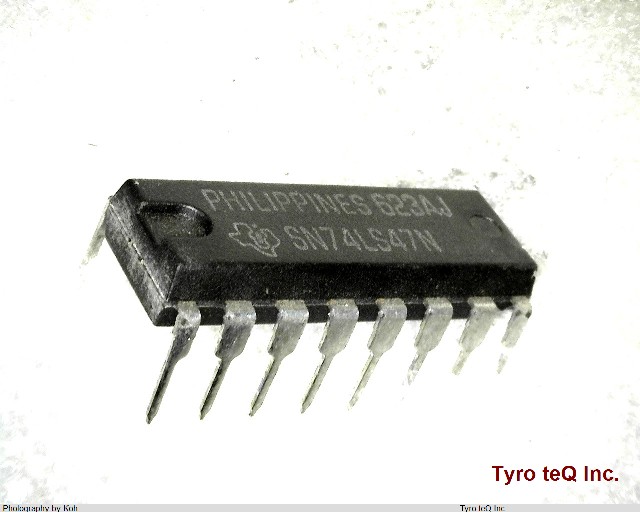

Name: SN74LS47N
Brand: TI
SKU: 290000815-0000-0000-0000

SN74LS47N - TI の商品詳細ページです。

２営業日以内に回答いたします

アドバンストLS-TTL　トランジスタ・トランジスタ・ロジック|パッケージ：PDIP | 梱包：Tube|動作温度 0℃ to 70℃

SN74LS47N の詳細情報

型番	SN74LS47N
メーカー	TI
種別	アドバンストLS-TTL
データシート
Additional Feature	RIPPLE BLANKING; LAMP TEST INPUT
Family	LS
Input Conditioning	STANDARD
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	10.2 mm
Load Capacitance (CL)	15 pF
Logic IC Type	OTHER DECODER/DRIVER
Max I(ol)	0.0032 Amp
Moisture Sensitivity Level	1
Number of Bits	7
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Characteristics	OPEN-COLLECTOR
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Power Supply Current-Max (ICC)	10 mA
Prop. Delay@Nom-Sup	100 ns
Propagation Delay (tpd)	100 ns
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Sub Category	Decoder/Drivers
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
